2 Inch Rubber Hose Crimping Machine with 600T Crimping Force and 0.01mm Accuracy for High Precision Hydraulic Hose Crimper

  • 2 Inch Rubber Hose Crimping Machine with 600T Crimping Force and 0.01mm Accuracy for High Precision Hydraulic Hose Crimper
  • 2 Inch Rubber Hose Crimping Machine with 600T Crimping Force and 0.01mm Accuracy for High Precision Hydraulic Hose Crimper
  • 2 Inch Rubber Hose Crimping Machine with 600T Crimping Force and 0.01mm Accuracy for High Precision Hydraulic Hose Crimper
  • 2 Inch Rubber Hose Crimping Machine with 600T Crimping Force and 0.01mm Accuracy for High Precision Hydraulic Hose Crimper
  • 2 Inch Rubber Hose Crimping Machine with 600T Crimping Force and 0.01mm Accuracy for High Precision Hydraulic Hose Crimper
Tempat asal Cina
Nama merek MENSIONFLEX
Sertifikasi CE ROHS ISO
Nomor model MS-51
Kuantitas min Order 1 set
Kemasan rincian Setiap kotak kayu lapis untuk satu set
Waktu pengiriman 2 - 5 hari kerja
Syarat-syarat pembayaran T/T,L/C,D/A,D/P,Western Union
Menyediakan kemampuan 500 Set Per Bulan

Contact me for free samples and coupons. Hubungi saya untuk sampel dan kupon gratis.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.

x
Detail produk
Model MS-51 Warna Biru atau putih
Jangkauan crimping 15mm - 87mm Set mati 10
Pembukaan Maks 33mm Ketepatan 0,01mm
Kekuatan crimping 600T Tekanan sistem 31.5mpa
Mode Operasi Otomatis/manual
Menyoroti

2 Inch Rubber Hose Crimping Machine

,

600T Crimping Force Hydraulic Hose Crimper

,

0.01mm Accuracy Hose Crimping Tool
Tinggalkan pesan
Deskripsi Produk

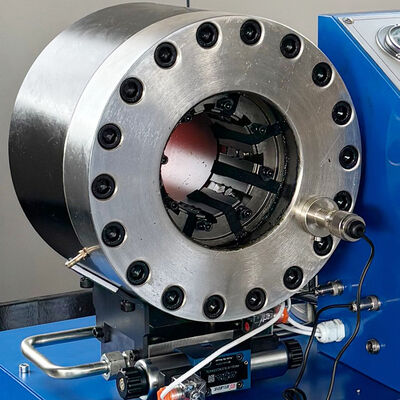

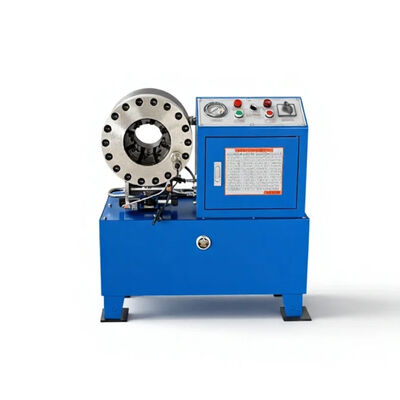

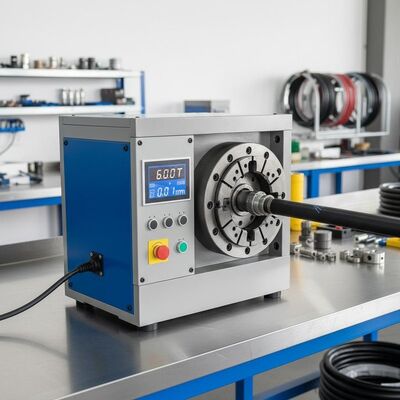

MS-51 High Pressure Rubber Hose Crimping Machine
The MS-51 hose crimper is engineered for rubber hose pressing from 1/4 inch to 2 inch diameters. Equipped with 10 die sets ranging from 15mm to 63mm, this machine ensures each hose, fitting, and ferrule combination receives precise crimping treatment. The result is hose assemblies with perfect surface finish, preventing oil leakage and extending hydraulic hose service life.
Key Advantages

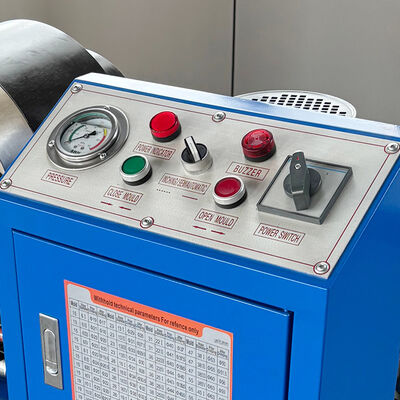

  • Dual operation modes for operator convenience and flexibility
  • High-precision crimping dial for accurate size control
  • High-hardness die sets for extended service life
  • Multiple hydraulic pump options for different working environments
Technical Specifications
Model MS-51 Rubber Hose Crimping Machine
Crimping Range 15 - 87mm
Hose Size 1/4" - 2"
Max Opening +33mm
Die Sets 10 sets
Die Type 51
Accuracy 0.01mm
System Pressure 31.5Mpa
Voltage 110V/220V/380V
Motor Power 3KW/4KW
Dimension 680*560*710mm
Weight 245KGS
2 Inch Rubber Hose Crimping Machine with 600T Crimping Force and 0.01mm Accuracy for High Precision Hydraulic Hose Crimper 0
Additional Notes
  • Die sets available in various sizes, lengths, and shapes
  • Custom voltage and frequency options available
  • Multiple color choices available
  • Max. Opening refers to the working stroke for the cylinder
MS-51 Hose Crimper Die Sets
Code Crimping Range (mm) Length (mm)
15 15 - 19 60
19 19 - 23 60
23 23 - 26 60
26 26 - 31 60
31 31 - 36 70
36 36 - 41 70
41 41 - 47 70
47 47 - 55 80
55 55 - 63 80
63 63 - 74 80
High Hardness Die Sets (59-63HRC)
2 Inch Rubber Hose Crimping Machine with 600T Crimping Force and 0.01mm Accuracy for High Precision Hydraulic Hose Crimper 1
