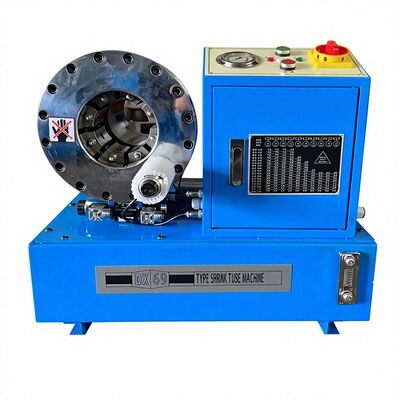

CE RoHS Certified Hydraulic Hose Crimping Machine with 640T Crimping Force 14-87mm Range and 10 Die Sets for Rubber Hose Assembly
Contact me for free samples and coupons. Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.
xDetail produk
| Jangkauan crimping | 14 - 87mm | Ukuran Selang | 2 inci 4SH |
|---|---|---|---|
| Set mati | 10 | Warna | Biru |
| Max. Maks. opening pembukaan | 25mm | Kekuatan crimping | 640T |
| Nama Produk | MS - Mesin Crimping DX69 | Aplikasi | Bengkel |
| Tekanan sistem | 31.5mpa | Kekuatan | 3KW / 4KW |
| Ukuran | 630*450*560mm | Berat | 190Kg |
| Menyoroti | 640T Crimping Force Hose Crimping Machine,14-87mm Crimping Range Hydraulic Hose Crimping Machine,10 Die Sets Rubber Hose Assembly Making Machine |
||
Deskripsi Produk
CE RoHS Certified Hydraulic Hose Crimping Machine With 640T Crimping Force 14-87mm Range And 10 Die Sets For Rubber Hose Assembly
Hydraulic Pipe Pressing Machine DX69 Rubber Hose Assembly Making Machine
64mm Hydraulic Pipe Pressing Machine DX69 For Rubber Hose Assembly Making
HYDRAULIC HOSE CRIMPING PRESS MACHINE MS - DX69
MS-DX69 is renowned for its high speed and precision crimping capabilities. This machine is designed for crimping hydraulic hose and fittings ranging from 1/4" to 2" with four to six steel wire braided construction. Available in single phase or three phase configurations to meet your specific requirements.
KEY FEATURES
- Precise crimping with substantial force
- High stability with quality components
- Operator-friendly design for ease of use
- Simple operation with enhanced safety features
- Hydraulic back positioning system
TECHNICAL SPECIFICATIONS
| Model | DX-69 Crimping Machine |
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 640 (T) |
| Hose Size | 1/4 - 2 (inch) 4 Layers |
| Max. Opening | 25 (mm) |
| Die Sets | 10 |
| Die Set Type | 69 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage | 220 (V) / 380 (V) |
| Motor Power | 3 (KW) / 4 (KW) |
| Length | 630 (mm) |
| Width | 450 (mm) |
| Height | 560 (mm) |
| Weight | 190 (KG) |
69 CRIMPER DIE SETS
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8 mm | 35 |
| 8* | 8 - 10 mm | 35 |
| 10* | 10 - 12 mm | 35 |
| 12* | 12 - 14 mm | 35 |
| 14 | 14 - 16 mm | 60 |
| 16 | 16 - 20 mm | 60 |
| 20 | 20 - 22 mm | 60 |
| 22 | 22 - 26 mm | 60 |
| 26 | 26 - 30 mm | 70 |
| 30 | 30 - 38 mm | 70 |
| 38 | 38 - 46 mm | 70 |
| 46 | 46 - 54 mm | 80 |
| 54 | 54 - 64 mm | 80 |
| 64 | 64 - 69 mm | 80 |
| 69* | 69 - 76 mm | 100 |
Important Notes:
1) Customized die sets are available upon request
2) Special voltage options: 110V, 208V, 240V, 415V
3) * indicates non-standard die sets
1) Customized die sets are available upon request
2) Special voltage options: 110V, 208V, 240V, 415V
3) * indicates non-standard die sets
STANDARD DELIVERY INCLUDES
- Hose Crimping Machine
- Foot Pedal
- 10 Die Sets
- Operation Manual
- Consumable Accessories
OPTIONAL ACCESSORIES
- Quick Change Tool
- Quick Change Die Set Rack
- UC Control System
