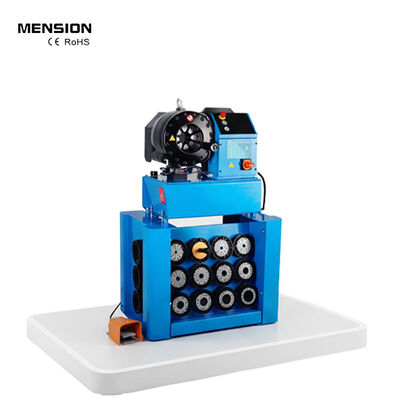

P32 Hydraulic Hose Crimping Machine with 650T Crimping Force 13 Die Sets and 31.5Mpa System Pressure

  • P32 Hydraulic Hose Crimping Machine with 650T Crimping Force 13 Die Sets and 31.5Mpa System Pressure
  • P32 Hydraulic Hose Crimping Machine with 650T Crimping Force 13 Die Sets and 31.5Mpa System Pressure
Tempat asal CN
Nama merek MENSION
Sertifikasi CE RoHS
Nomor model MS-E130
Kuantitas min Order 1 Set
Harga Contact Us
Kemasan rincian Satu Kayu Lapis Untuk Satu Set
Waktu pengiriman 2 - 7 Hari Kerja
Syarat-syarat pembayaran L/C,D/A,D/P,T/T,Western Union,MoneyGram
Menyediakan kemampuan 1000 SET PER BULAN

Contact me for free samples and coupons. Hubungi saya untuk sampel dan kupon gratis.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.

x
Detail produk
Jangkauan crimping 14-87mm Ukuran Selang 1/4-2,5 inci
Set mati 13 Warna biru
Max. Maks. opening pembukaan 31mm Kekuatan crimping 650T
Tekanan sistem 31.5mpa Kekuatan 3,75kw
Ukuran 650*550*1360mm Berat 310kg
Menyoroti

650T Crimping Force Hydraulic Hose Crimping Machine

,

13 Die Sets Hose Crimper

,

31.5Mpa System Pressure Hydraulic Crimper
Tinggalkan pesan
Deskripsi Produk
P32 Hydraulic Hose Crimping Machine with 650T Crimping Force
The MS-P32 hydraulic hose crimping machine is a high-performance industrial solution designed for demanding hydraulic applications. With substantial 650T crimping force and compatibility with hose sizes from 6mm to 64mm, this machine delivers reliable performance for high-pressure hydraulic systems.
Key Advantages
  • Rexroth valve system ensures powerful crimping force and extended service life
  • Quick-change tooling for die sets minimizes setup time and boosts productivity
  • Foot pedal operation provides hands-free control for improved work efficiency
  • Popular model with strong market demand in 2024
Technical Specifications
Model MS-E130 P32 Crimping Machine
Crimping Range 14 - 87 (mm)
Crimping Force 650 (T)
Hose Size 1/4 - 2.5 (inch)
Max. Opening 31 (mm)
Die Sets 13
Die Set Type P32
System Pressure 31.5 (Mpa)
Accuracy 0.01 (mm)
Control MS
Standard Voltage 220 (V) / 380 (V)
Motor Power 3.75 (KW)
Length 650 (mm)
Width 550 (mm)
Height 1360 (mm)
Weight 310 (KG)
P32 Hydraulic Hose Crimping Machine with 650T Crimping Force 13 Die Sets and 31.5Mpa System Pressure 0
P32 Crimping Machine Die Sets
Die No. Crimping Range Length
6* 6 - 8mm 55
8* 8 - 10mm 55
10* 10 - 12mm 55
12* 12 - 14mm 55
14 14 - 16mm 55
16 16 - 19mm 55
19 19 - 22mm 55
22 22 - 26mm 70
26 26 - 30mm 70
30 30 - 34mm 70
34 34 - 39mm 75
39 39 - 45mm 75
45 45 - 51mm 90
51 51 - 57mm 90
57 57 - 63mm 100
63 63 - 69mm 110
69 69 - 78mm 110
Important Notes
  • "*" indicates non-standard die sets
  • Customized die sets are available upon request
  • Special voltage options available: 110V, 208V, 240V, 415V
Applications
  • High-pressure stainless steel braided hydraulic rubber hose
  • Industrial hose systems
  • Cables and wires
  • Steel and iron tubes
  • Automotive brake lines
  • Air suspension or spring systems
P32 Hydraulic Hose Crimping Machine with 650T Crimping Force 13 Die Sets and 31.5Mpa System Pressure 1 P32 Hydraulic Hose Crimping Machine with 650T Crimping Force 13 Die Sets and 31.5Mpa System Pressure 2
