P32 Mesin Pengikat Kabel
,Hydraulic Hose Pressing Machine 1/4"
P32MS Mesin pemotong kabel listrik
Deskripsi

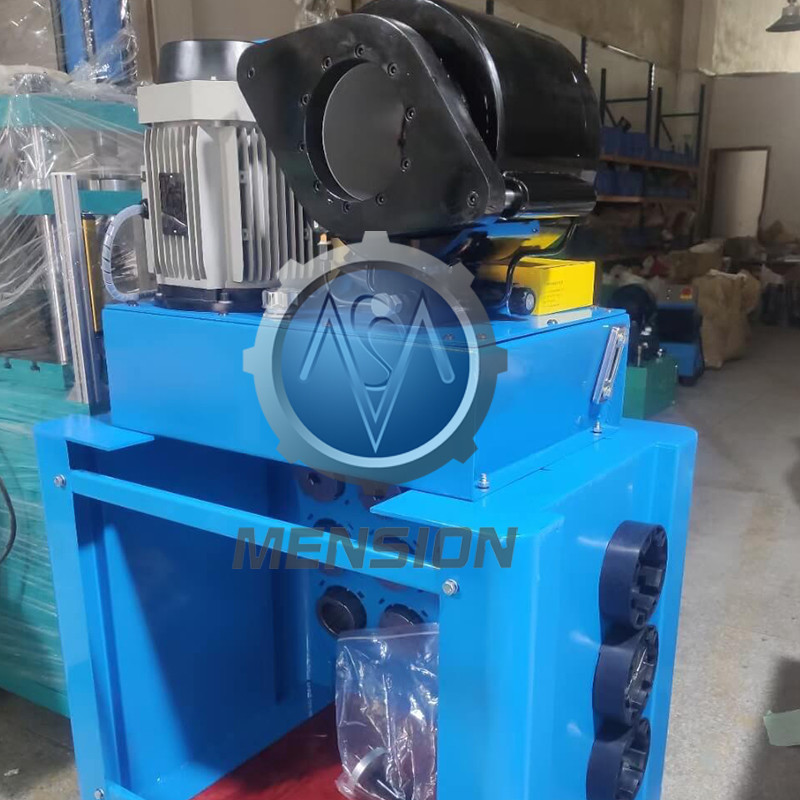

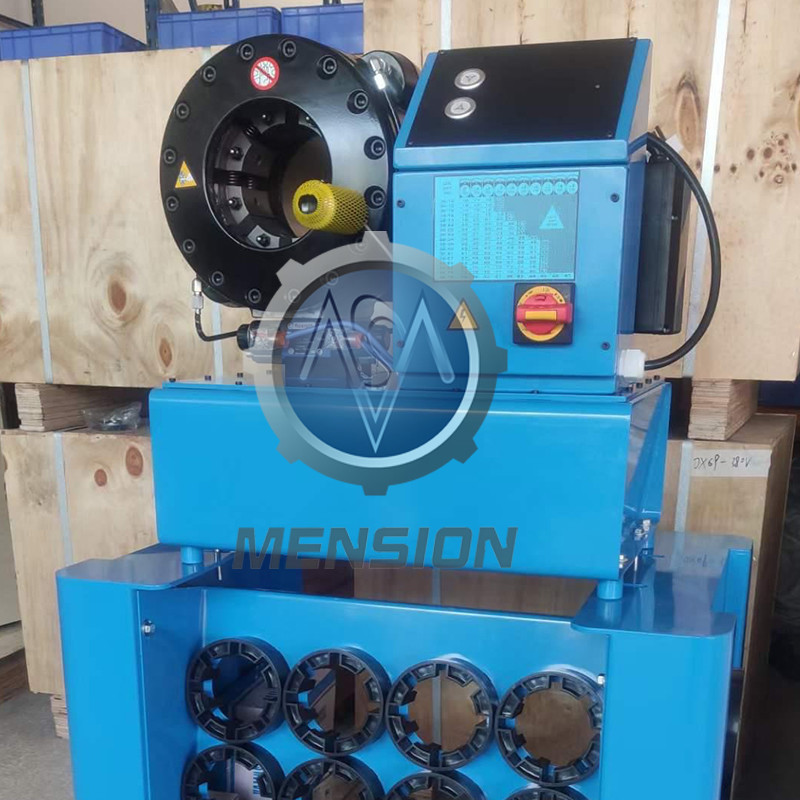

P32MS adalah alat penekan selang model Finn Power. Hal ini dapat mengencangkan selang hidrolik dari 4mm dan hingga 2,5 inci dengan kawat diikat atau kawat spiral,seperti selang tekanan tinggi 4SH 4SP dan bahkan selang karet tekanan tinggi R13 R15.
P32MS adalah standar dengan pedal kaki, sehingga operator dapat memegang selang dengan tangan, yang akan lebih nyaman.
Keuntungan
1Sistem listrik Eton, stabilitas tinggi.
2Sistem hidraulik Rexroth Jerman.
3Desain user-friendly.
4Gerakan vertikal untuk mati master, akurasi tinggi.
DATA TEKNIS
|
Model |
P32MS Mesin Selang Crimper Press |
|
Jangkauan Crimping |
14 - 87 (mm) |
|
Kekuatan Crimping |
650 (T) |
|
Ukuran selang |
1/4 - 2,5 (inci) |
|
Max. pembukaan |
31 (mm) |
|
Set mati |
13 |
|
Tipe set mati |
P32 |
|
Tekanan Sistem |
31.5 (Mpa) |
|
Keakuratan |
0.01 (mm) |
|
Pengendalian |
Negara anggota |
|
Tegangan Standar |
220 (V) |
|
Kekuatan motor |
3 (KW) |
|
Panjang |
650 (mm) |
|
Lebar |
550 (mm) |
|
Ketinggian |
1360 (mm) |
|
Berat badan |
310 (Kg) |
P32 SET PEMANGAT SIPULAN
|
Tidak. |
Jangkauan Crimping |
Panjang |
|
6* |
6... 8mm |
55 mm |
|
8* |
8... 10mm |
55 mm |
|
10* |
10... 12mm |
55 mm |
|
12* |
12... 14mm |
55 mm |
|
14 |
14... 16mm |
55 mm |
|
16 |
16... 19mm |
55 mm |
|
19 |
19... 22mm |
55 mm |
|
22 |
22... 26mm |
70 mm |
|
26 |
26... 30mm |
70 mm |
|
30 |
30... 34mm |
70 mm |
|
34 |
34... 39mm |
75 mm |
|
39 |
39... 45mm |
75 mm |
|
45 |
45... 51mm |
90 mm |
|
51 |
51... 57mm |
90 mm |
|
57 |
57... 63mm |
100 mm |
|
63 |
63... 69mm |
110 mm |
|
69 |
69... 74mm |
110 mm |
| 74* | 74... 78mm | 110 mm |
| 78* | 78... 87mm | 110 mm |
Catatan
• "*" untuk set die non-standar
• Set mati khusus tersedia
• Tegangan khusus 110V, 208V, 240V, 415V tersedia
Opsional
• Sistem kontrol UC
• Perangkat batas posisi
Aplikasi untuk mesin pengering selang hidrolik P32
-
SI've been running a hardware store for three years. This hydraulic crimping machine was the one I chose after comparing five different models. Initially, I was worried about the precision, so I tested over 20 high-pressure oil pipe connectors—each crimped perfectly in one go without any leaks. Now, customer feedback is great, and the repeat purchase rate is high
-
AThose who open a truck repair shop usually apply pressure to the brake oil pipe and hydraulic oil pipe of the truck. The manual version has sufficient pressure and the joint is tightly pressed. The truck runs long distances without oil leakage, which is recognized by the driver. The machine is durable and can be used in stores, as well as in places without electricity outdoors
-
TAs a shop specializing in precision machinery, we have exceptionally high precision requirements for crimping machines. This equipment features adjustable crimping stroke with minimal error, ensuring oil-free connections after crimping. Even beginners can quickly learn—just 30 minutes of training enables them to operate it independently
