Mesin pencet selang 50L
,Mesin pencet selang karet P32
,Mesin penekan pipa karet vertikal

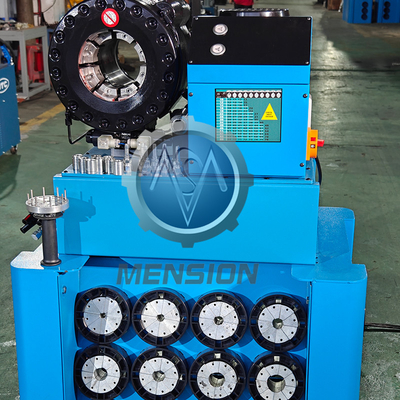

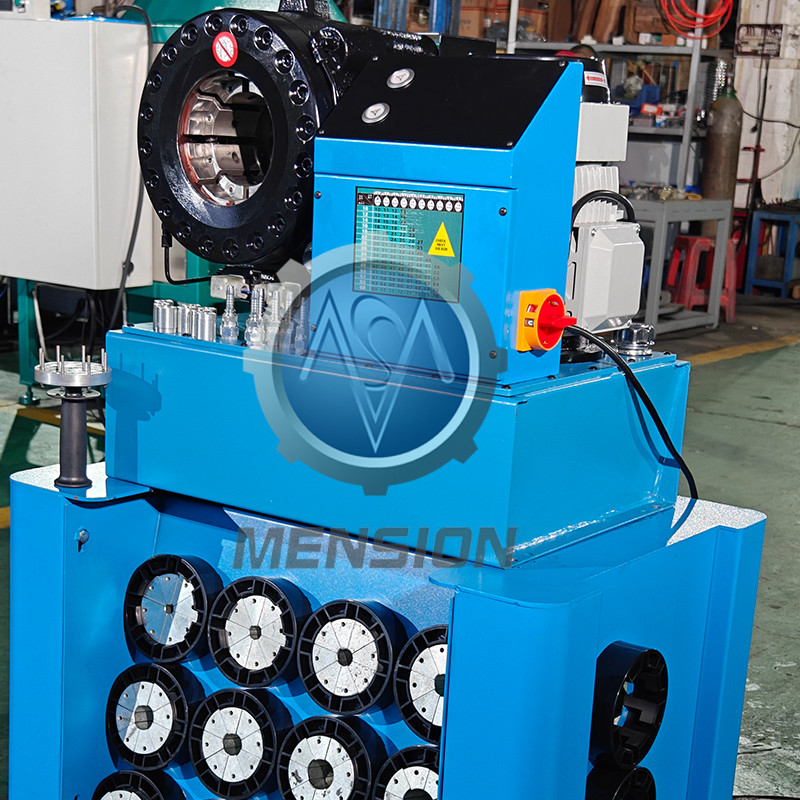

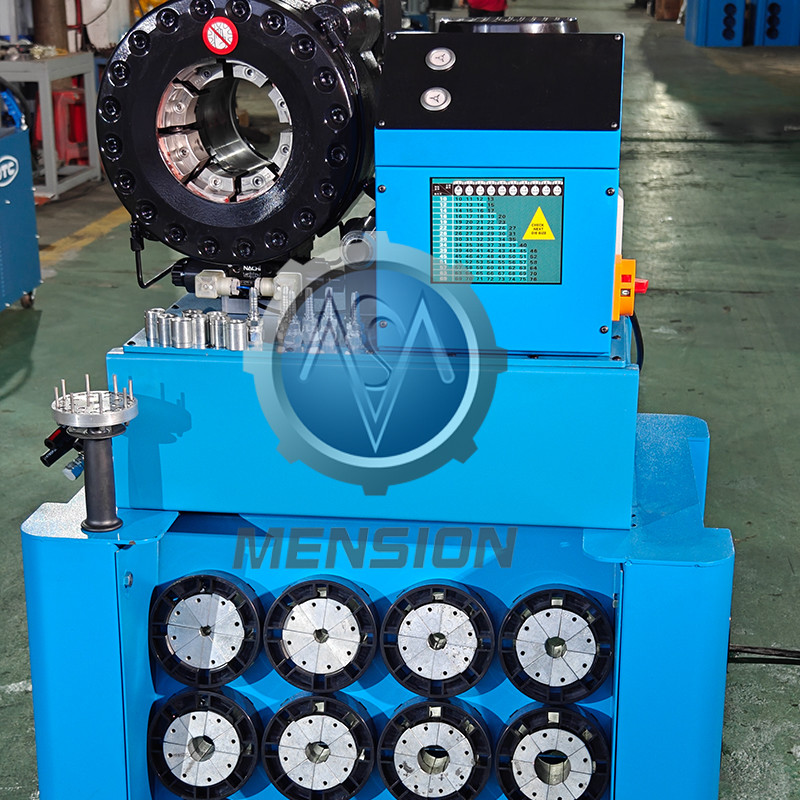

P32 HIDROULIC CRIMPING MACHINE untuk karet
Deskripsi
Mesin pers pipa P32 paling populer karena kemampuan crimping yang luas untuk selang hidrolik, selang industri, dll. Sangat nyaman untuk dioperasikan, bahkan pengguna baru dapat menangani mesin ini tanpa pertanyaan.
Hose crimper P32 adalah pilihan ideal untuk pembuatan selang hidrolik. mati dengan delapan bagian, desain manusia. permukaan crimping halus dan mencegah kebocoran minyak selama masa pakai selang.
Keuntungan
1Tekanan tinggi untuk spiral selang crimps.
2. Disesuaikan untuk mengubah set mati.
3Desain user-friendly.
4Gerakan vertikal untuk mati master, akurasi tinggi.
DATA TEKNIS
|
Model |
P32 Mesin Penekanan Pipa |
|
Jangkauan Crimping |
14 - 87 (mm) |
|
Kekuatan Crimping |
650 (T) |
|
Ukuran selang |
1/4 - 2,5 (inci) |
|
Max. pembukaan |
31 (mm) |
|
Set mati |
13 |
|
Tipe set mati |
P32 |
|
Tekanan Sistem |
31.5 (Mpa) |
|
Keakuratan |
0.01 (mm) |
|
Pengendalian |
Negara anggota |
|
Tegangan Standar |
220 (V) |
|
Kekuatan motor |
3 (KW) |
|
Panjang |
650 (mm) |
|
Lebar |
550 (mm) |
|
Ketinggian |
1360 (mm) |
|
Berat badan |
310 (Kg) |
P32 SET PEMANGAT SIPULAN
|
Tidak. |
Jangkauan Crimping |
Panjang |
|
6* |
6... 8mm |
55 mm |
|
8* |
8... 10mm |
55 mm |
|
10* |
10... 12mm |
55 mm |
|
12* |
12... 14mm |
55 mm |
|
14 |
14... 16mm |
55 mm |
|
16 |
16... 19mm |
55 mm |
|
19 |
19... 22mm |
55 mm |
|
22 |
22... 26mm |
70 mm |
|
26 |
26... 30mm |
70 mm |
|
30 |
30... 34mm |
70 mm |
|
34 |
34... 39mm |
75 mm |
|
39 |
39... 45mm |
75 mm |
|
45 |
45... 51mm |
90 mm |
|
51 |
51... 57mm |
90 mm |
|
57 |
57... 63mm |
100 mm |
|
63 |
63... 69mm |
110 mm |
|
69 |
69... 74mm |
110 mm |
| 74* | 74... 78mm | 110 mm |
| 78* | 78... 87mm | 110 mm |
Catatan
• "*" untuk set die non-standar
• Set mati khusus tersedia
• Tegangan khusus 110V, 208V, 240V, 415V tersedia
Opsional
• Sistem kontrol UC
• Perangkat batas posisi
Aplikasi untuk mesin pengering selang hidrolik P32
-
CReliable quality, easy to use, a great helper for starting a business.
-
CI've been running a hardware store for three years. This hydraulic crimping machine was the one I chose after comparing five different models. Initially, I was worried about the precision, so I tested over 20 high-pressure oil pipe connectors—each crimped perfectly in one go without any leaks. Now, customer feedback is great, and the repeat purchase rate is high
-
GThose who open a truck repair shop usually apply pressure to the brake oil pipe and hydraulic oil pipe of the truck. The manual version has sufficient pressure and the joint is tightly pressed. The truck runs long distances without oil leakage, which is recognized by the driver. The machine is durable and can be used in stores, as well as in places without electricity outdoors
