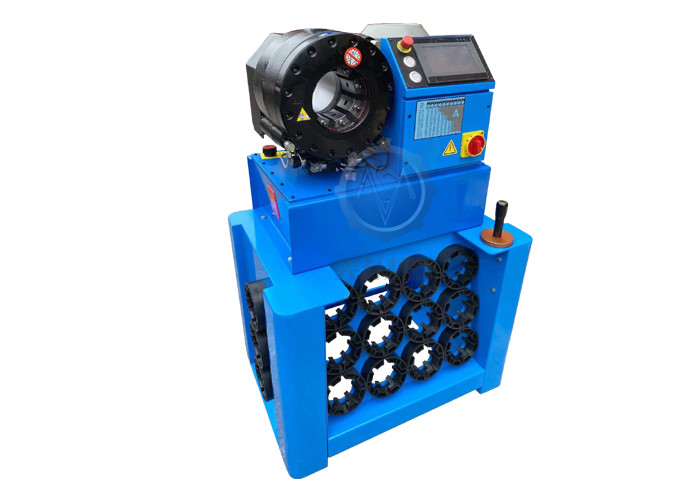

Mesin Crimping Selang Hidraulik Otomatis
,Mesin pengikat selang hidraulik P32NC
,650T Kekuatan Hydraulic Hose Crimper
Otomatis Hidrolik Hose Crimping Mesin P32NC Kabel Penekan Mesin
Mesin pengering selang otomatis P32NC
Deskripsi
P32NC selang crimper adalah model otomatis dengan CNC microcomputer kontrol tinggi cerdas.Mesin crimping ini cocok untuk tekanan tinggi selang fleksibel hidrolik dari 1/4 'ke 2-1/2' menekan dan sampai 3' inci industri pipa swaging.
Dengan alat perubahan die set cepat, operator tidak perlu mengubah die set satu bagian demi satu bagian. efisiensi produksi dapat meningkatkan banyak dengan mesin penekan pipa ini.
Keuntungan
1) Motor listrik terkenal dengan layanan purna jual di seluruh dunia.
2) Sistem operasi canggih, lebih nyaman manusia.
3) Keakuratan diameter crimping yang tinggi.
4) Kekuatan crimping besar dan bukaan besar.
DATA TEKNIS
|
Model |
P32NC Mesin Crimping Selang Hidraulik |
|
Jangkauan Crimping |
14 - 87 (mm) |
|
Kekuatan Crimping |
650 (T) |
|
Ukuran selang |
1/4 - 2,5 (inci) |
|
Max. pembukaan |
31 (mm) |
|
Set mati |
13 |
|
Tipe set mati |
P32 |
|
Tekanan Sistem |
31.5 (Mpa) |
|
Keakuratan |
0.01 (mm) |
|
Pengendalian |
Negara anggota |
|
Tegangan Standar |
380 (V) |
|
Kekuatan motor |
3.75 (KW) |
|
Panjang |
650 (mm) |
|
Lebar |
550 (mm) |
|
Ketinggian |
1360 (mm) |
|
Berat badan |
310 (Kg) |
P32 CRIMPER DIE SET
|
Tidak. |
Jangkauan Crimping |
Panjang |
|
6* |
6 - 8 mm |
55 |
|
8* |
8 - 10mm |
55 |
|
10* |
10 - 12 mm |
55 |
|
12* |
12 - 14 mm |
55 |
|
14 |
14 - 16mm |
55 |
|
16 |
16 - 19mm |
55 |
|
19 |
19 - 22mm |
55 |
|
22 |
22 - 26mm |
70 |
|
26 |
26 - 30mm |
70 |
|
30 |
30 - 34mm |
70 |
|
34 |
34 - 39mm |
75 |
|
39 |
39 - 45 mm |
75 |
|
45 |
45 - 51 mm |
90 |
|
51 |
51 - 57mm |
90 |
|
57 |
57 - 63mm |
100 |
|
63 |
63 - 69mm |
110 |
|
69 |
69 - 78mm |
110 |
Catatan
- * untuk set die non standar;
- Set mati yang disesuaikan tersedia;
- Tegangan khusus 110V, 208V, 240V, 415V tersedia;
► APPLICATION SHOW
P32NC adalah mesin hose crimping konfigurasi tinggi, itu memiliki kemampuan untuk crimping tekanan tinggi
Selang hidrolik berlapis baja tahan karat, kabel dan kawat, tabung baja dan besi, jalur rem di otomotif
sistem, suspensi udara atau pegas.
-
