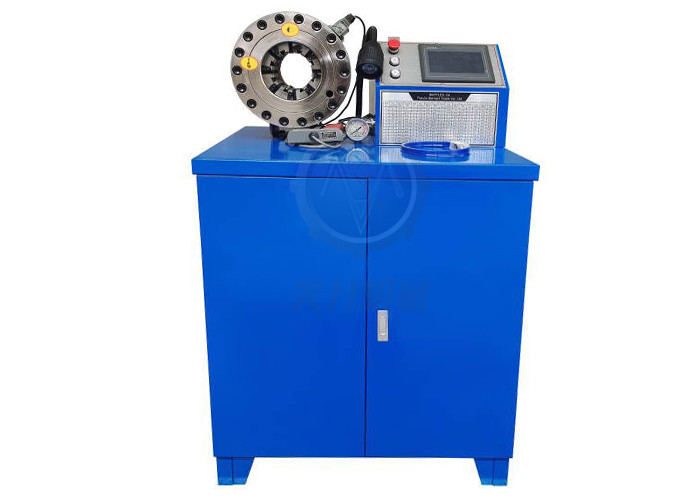

Mesin pengering selang hidrolik otomatis MS-N51CG
Deskripsi
MS-N51CG mesin penekan selang hidrolik adalah dengan canggih CNC sistem kontrol mikro komputer.yang cocok untuk swaging assembly selang dari 1/4 inci sampai 2 inci 4 lapisan baja dipintal atau spiralDengan set die yang disesuaikan, rentang crimping bisa lebih besar, seperti untuk selang 1/8 'atau selang AC khusus dan selang jalur rem.
Keuntungan Utama
1. Fleksibilitas untuk banyak ukuran selang crimping dan swaging pekerjaan;
2. Kekuatan crimping selang besar dengan pompa minyak besar;
3. Sistem PLC terkenal untuk memungkinkan selang pintar dan kabel crimping;
5Keakuratan tinggi.
DATA TEKNIS
|
Model |
MS-N51CG Mesin Crimping Selang |
|
Jangkauan Crimping |
14 - 87 (mm) |
|
Kekuatan Crimping |
500 (T) |
|
Ukuran selang |
1/4 - 2 (inci) |
|
Max. pembukaan |
30 mm |
|
Set mati |
10 |
|
Tipe set mati |
51 |
|
Tekanan Sistem |
31.5 (Mpa) |
|
Keakuratan |
0.05 (mm) |
|
Pengendalian |
Negara anggota |
|
Tegangan Standar |
220 (V) / 380 (V) |
|
Kekuatan motor |
3 (KW) |
|
Panjang |
800 (mm) |
|
Lebar |
640 (mm) |
|
Ketinggian |
1300 (mm) |
|
Berat badan |
320 (Kg) |

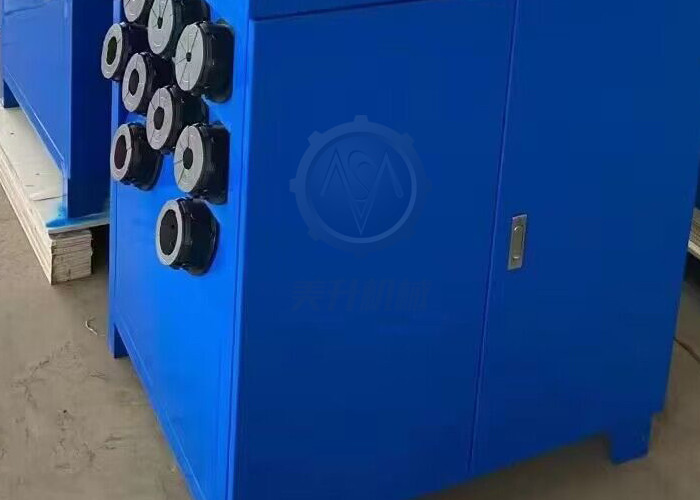

51 HOSE CRIMPER DIE SET
|
Tidak. |
Jangkauan Crimping |
Panjang |
|
6* |
6 - 8 mm |
35 |
|
8* |
8 - 10 mm |
35 |
|
10* |
10 - 12 mm |
35 |
|
12* |
12 - 15 mm |
35 |
|
15 |
15 - 19 mm |
60 |
|
19 |
19 - 23 mm |
60 |
|
23 |
23 - 26 mm |
60 |
|
26 |
26 - 31 mm |
60 |
|
31 |
31 - 36 mm |
70 |
|
36 |
36 - 41 mm |
70 |
|
41 |
41 - 47 mm |
70 |
|
47 |
47 - 55 mm |
80 |
|
55 |
55 - 63 mm |
80 |
|
63 |
63 - 69 mm |
80 |
|
69* |
69 - 76 mm |
100 |
Catatan
- * untuk set die non standar;
- Set mati yang disesuaikan tersedia;
- Tegangan khusus 110V, 208V, 240V, 415V tersedia;
Opsional
- Alat Perubahan Cepat
- Kontrol UC;
-
