2' 'High Pressure Hydraulic Hose Crimper
,Crimper selang hidrolik tekanan tinggi 51CG
,Crimper selang tekanan tinggi 2 inci

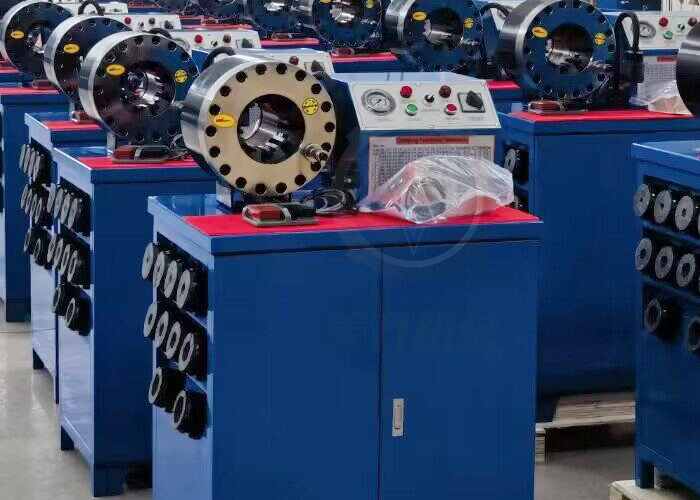

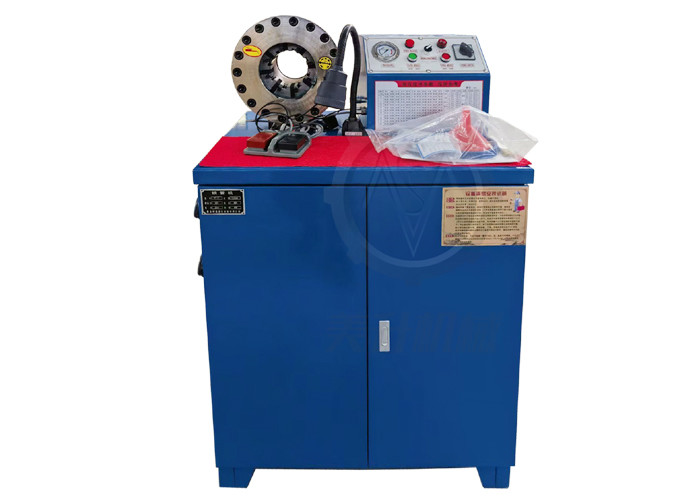

FLEXIBLE PIPE CRIMPING MACHINE MS-51CG (Mesin untuk meremas pipa yang fleksibel)
Deskripsi
MS-51CG tekanan tinggi mesin crimping selang hidrolik cocok untuk selang tekanan dengan stainless steel kawat dipintal 1/4 sampai 2 inci perakitan pembuatan.itu telah menjadi salah satu mesin yang paling disukai dalam beberapa tahun terakhir. Mesin crimping selang ini dapat digunakan dalam banyak industri, seperti perbaikan mesin hidrolik, fleksibel selang fittings assembly pembuatan, kawat tali swaging untuk menggantung,Pemanasan tabung baja tahan karat atau baja untuk mengurangi diameter.
Keuntungan Utama
1. Berbagai aplikasi;
2. Ferrule crimping dan pembuatan;
3. Layanan OEM tersedia;
4Kecepatan cepat.
DATA TEKNIS
|
Model |
MS-51CG Mesin Crimping Selang |
|
Jangkauan Crimping |
14 - 87 (mm) |
|
Kekuatan Crimping |
500 (T) |
|
Ukuran selang |
1/4 - 2 (inci) |
|
Max. pembukaan |
30 mm |
|
Set mati |
10 |
|
Tipe set mati |
51 |
|
Tekanan Sistem |
31.5 (Mpa) |
|
Keakuratan |
0.05 (mm) |
|
Pengendalian |
Negara anggota |
|
Tegangan Standar |
220 (V) / 380 (V) |
|
Kekuatan motor |
3 (KW) |
|
Panjang |
800 (mm) |
|
Lebar |
640 (mm) |
|
Ketinggian |
1300 (mm) |
|
Berat badan |
320 (Kg) |
51 HOSE CRIMPER DIE SET
|
Tidak. |
Jangkauan Crimping |
Panjang |
|
6* |
6 - 8 mm |
35 |
|
8* |
8 - 10 mm |
35 |
|
10* |
10 - 12 mm |
35 |
|
12* |
12 - 15 mm |
35 |
|
15 |
15 - 19 mm |
60 |
|
19 |
19 - 23 mm |
60 |
|
23 |
23 - 26 mm |
60 |
|
26 |
26 - 31 mm |
60 |
|
31 |
31 - 36 mm |
70 |
|
36 |
36 - 41 mm |
70 |
|
41 |
41 - 47 mm |
70 |
|
47 |
47 - 55 mm |
80 |
|
55 |
55 - 63 mm |
80 |
|
63 |
63 - 69 mm |
80 |
|
69* |
69 - 76 mm |
100 |
Catatan
- * untuk set die non standar;
- Set mati yang disesuaikan tersedia;
- Tegangan khusus 110V, 208V, 240V, 415V tersedia;
Opsional
- Alat Perubahan Cepat
- Kontrol UC;
-
AThose who open a truck repair shop usually apply pressure to the brake oil pipe and hydraulic oil pipe of the truck. The manual version has sufficient pressure and the joint is tightly pressed. The truck runs long distances without oil leakage, which is recognized by the driver. The machine is durable and can be used in stores, as well as in places without electricity outdoors
-
TAs a shop specializing in precision machinery, we have exceptionally high precision requirements for crimping machines. This equipment features adjustable crimping stroke with minimal error, ensuring oil-free connections after crimping. Even beginners can quickly learn—just 30 minutes of training enables them to operate it independently
-
WP32 is very practical for our market. It handles 1/4" to 2" hoses easily. My workers learned quickly, and efficiency improved a lot. Thank you!
