Mesin Swaging Selang Tekanan Tinggi
,2 Inch Hose Swaging Mesin
,31.5Mpa Mesin Swaging Hose
Mesin SWAGING MS-51CG
Deskripsi

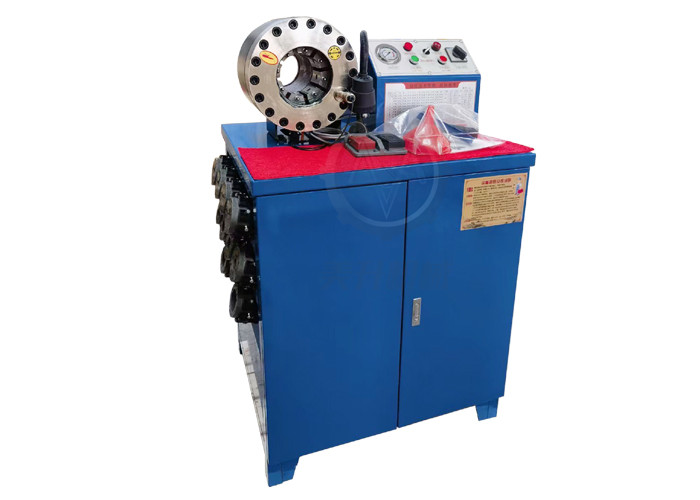

2 Inch high pressure hose swaging machine MS-51CG is a hose assembly crimping machinery with crimping ability from 1/4 inch to 2 inch one to six wire braided hose to make hydraulic hose assembly with fitting and ferrulesMesin seperti excavator konstruksi, loader, skidder kehutanan, crane mengkonsumsi banyak selang hidrolik.selang hidraulik perlu diganti secara teratur. Mesin crimping selang akan membantu crimping di tempat, melakukan perbaikan selang dan pemeliharaan.
Keuntungan Utama
1. Kinerja yang dapat diandalkan;
2. Keakuratan tinggi;
3. Aplikasi beberapa kali;
4. suku cadang berkualitas.
DATA TEKNIS
|
Model |
MS-51CG Selang Crimper |
|
Jangkauan Crimping |
14 - 87 (mm) |
|
Kekuatan Crimping |
500 (T) |
|
Ukuran selang |
1/4 - 2 (inci) |
|
Max. pembukaan |
30 mm |
|
Set mati |
10 |
|
Tipe set mati |
51 |
|
Tekanan Sistem |
31.5 (Mpa) |
|
Keakuratan |
0.05 (mm) |
|
Pengendalian |
Negara anggota |
|
Tegangan Standar |
220 (V) / 380 (V) |
|
Kekuatan motor |
3 (KW) |
|
Panjang |
800 (mm) |
|
Lebar |
640 (mm) |
|
Ketinggian |
1300 (mm) |
|
Berat badan |
320 (Kg) |
51 CRIMPER DIE SET
|
Tidak. |
Jangkauan Crimping |
Panjang |
|
6* |
6 - 8 mm |
35 |
|
8* |
8 - 10 mm |
35 |
|
10* |
10 - 12 mm |
35 |
|
12* |
12 - 15 mm |
35 |
|
15 |
15 - 19 mm |
60 |
|
19 |
19 - 23 mm |
60 |
|
23 |
23 - 26 mm |
60 |
|
26 |
26 - 31 mm |
60 |
|
31 |
31 - 36 mm |
70 |
|
36 |
36 - 41 mm |
70 |
|
41 |
41 - 47 mm |
70 |
|
47 |
47 - 55 mm |
80 |
|
55 |
55 - 63 mm |
80 |
|
63 |
63 - 69 mm |
80 |
|
69* |
69 - 76 mm |
100 |
Catatan
- * untuk set die non standar;
- Set mati yang disesuaikan tersedia;
- Tegangan khusus 110V, 208V, 240V, 415V tersedia;
Opsional
- Alat Perubahan Cepat;
- Kontrol UC;
-
