Mesin Crimping Kabel yang Tepat
,DX68 Kabel Crimping Machine
,Mesin Crimping Selang Dx68 yang Tepat
Mesin Crimping Kabel DX68 presisi tinggi E38 Dengan Selang Press Daya Hidraulik Besar

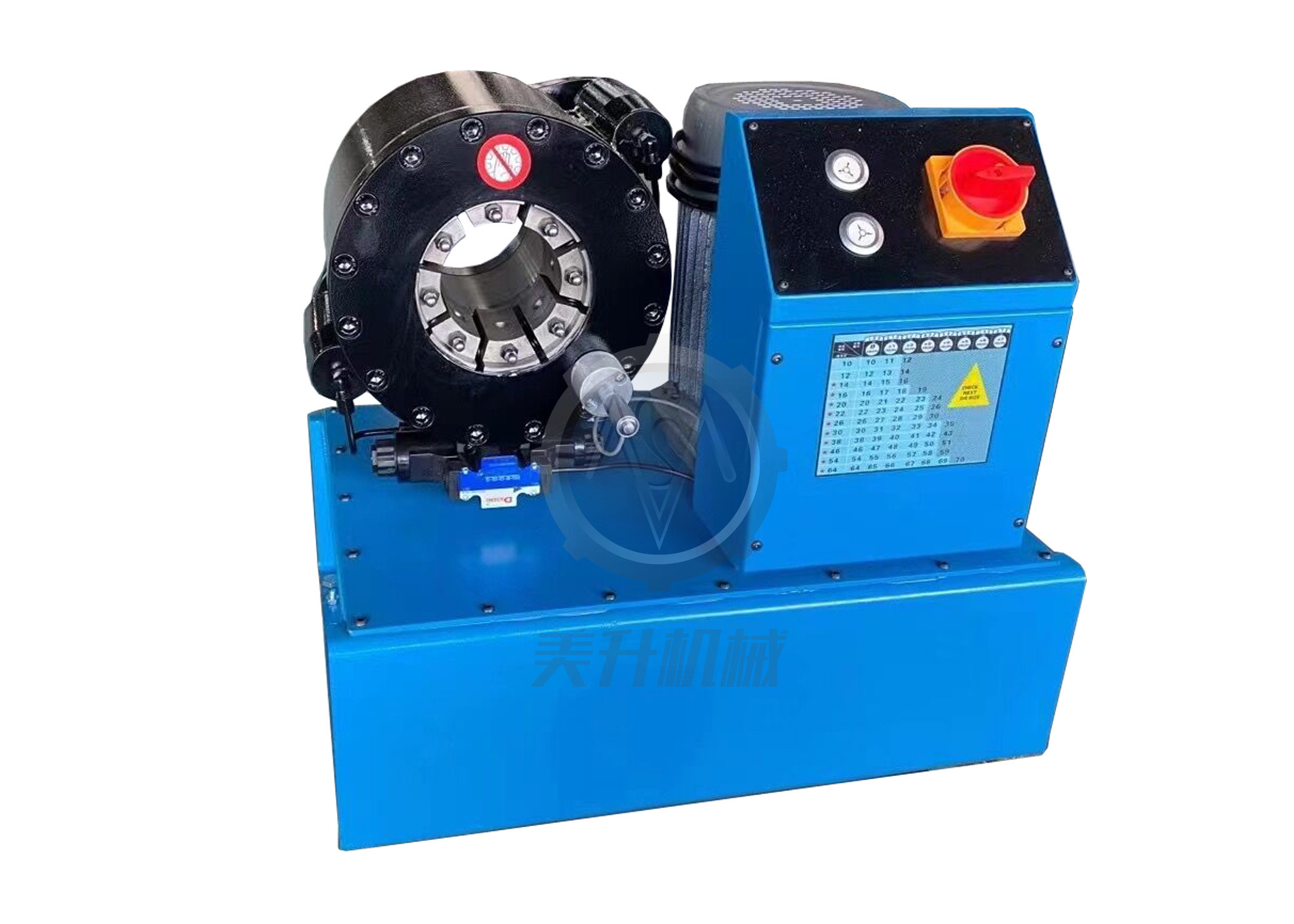

Mesin Pencetak Selang MS-E38
Deskripsi
MS-E38 adalah mesin pencetak selang dengan presisi tinggi dan produktivitas tinggi.Ini adalah model bangku atas, dapat ditempatkan di rak manapun untuk mendapatkan ketinggian ergonomis untuk pekerjaan operator.
Fitur Utama
1. Fleksibilitas untuk berbagai bahan;
2. Keandalan dengan kualitas tinggi;
3. Sertifikat CE dan RoHS;
4- Tingkat kebisingan rendah.
DATA TEKNIS
|
Model |
MS-E38 Mesin Crimping Hose |
|
Jangkauan Crimping |
14 - 87 (mm) |
|
Kekuatan Crimping |
640 (T) |
|
Ukuran selang |
1/4 - 2 (inci) 4SH |
|
Max. pembukaan |
31 (mm) |
|
Set mati |
10 |
|
Tipe set mati |
38 |
|
Tekanan Sistem |
31.5 (Mpa) |
|
Keakuratan |
0.01 (mm) |
|
Pengendalian |
Negara anggota |
|
Tegangan Standar |
220 (V) / 380 (V) |
|
Kekuatan motor |
4 (KW) |
|
Panjang |
630 (mm) |
|
Lebar |
450 mm |
|
Ketinggian |
600 (mm) |
|
Berat badan |
200 (Kg) |
| Minyak hidraulik | 50 (L) |
38 HOSE CRIMPER DIE SET
|
Tidak. |
Jangkauan Crimping |
Panjang |
|
6* |
6 - 8 mm |
35 |
|
8* |
8 - 10mm |
35 |
|
10* |
10 - 12 mm |
35 |
|
12* |
12 - 14 mm |
35 |
|
14 |
14 - 16mm |
60 |
|
16 |
16 - 20mm |
60 |
|
20 |
20 - 22mm |
60 |
|
22 |
22 - 26mm |
60 |
|
26 |
26 - 30mm |
70 |
|
30 |
30 - 38 mm |
70 |
|
38 |
38 - 46 mm |
70 |
|
46 |
46 - 54mm |
80 |
|
54 |
54 - 64mm |
80 |
|
64 |
64 - 69mm |
80 |
|
69* |
69 - 76mm |
100 |
Catatan
1) Set mati yang disesuaikan tersedia dengan ukuran atau bentuk yang berbeda;
2) Tegangan khusus seperti 110V, 208V, 240V, 415V (60HZ) tersedia;
3) Pedal kaki tersedia untuk membuat tangan bebas;
4) * untuk set die non standar.
