Spesifikasi
Menyoroti:
Desain Ergonomis Hydraulic Hose Crimper
,Crimper selang karet hidrolik
,3' 'Hydraulic Hose Crimper
Crimping Range:
14 - 87mm
Hose Size:
1/4 - 2,5 inci
Die Sets:
13
Color:
biru
Max. Opening:
31mm
Crimping Force:
650T
Product Name:
P32 Mesin Pengelompokan Selang
Application:
Bengkel
System Pressure:
31,5Mpa
Power:
3,75kw
Size:
650*550*1360mm
Weight:
310Kg
Atribut Utama
Nama merek:
MENSION
Nomor Model:
MS-P32
Tempat Asal:
CN
Sertifikasi:
CE RoHS
Jumlah Pesanan Minimum:
1 set
Harga:
Contact Us
Kemampuan Pasokan:
1000 set per bulan
Waktu Pengiriman:
2 - 7 Hari Kerja
Ketentuan Pembayaran:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Kemasan Standar:
Satu Kayu Lapis Untuk Satu Set
Deskripsi Produk

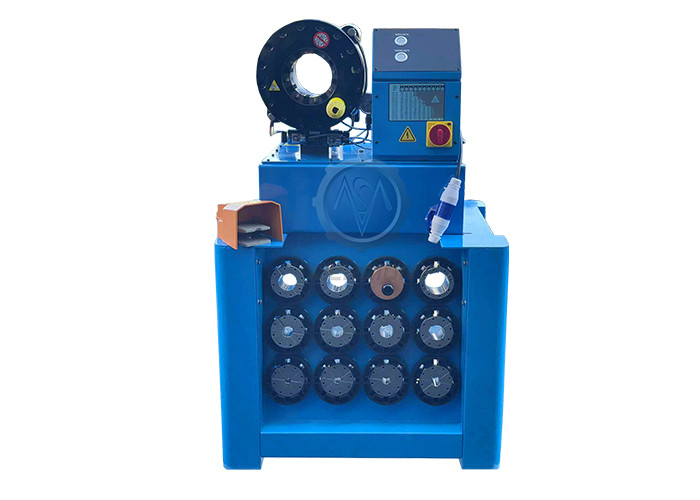

MS-P32 Mesin Crimping Selang Karet Hidraulik
Crimper selang hidrolik profesional yang dirancang untuk bengkel perbaikan selang industri dan toko pemasangan selang hidrolik, dengan kapasitas crimping 3 inci.
Keuntungan Utama
- Desain ergonomis untuk kenyamanan operator
- Stabilitas tinggi selama operasi
- Kapasitas produksi yang besar
- Operasi yang nyaman dan intuitif
Spesifikasi Teknis
| Model | Crimper selang MS-P32 |
|---|---|
| Jangkauan Crimping | 14 - 87 mm |
| Kekuatan Crimping | 650 Ton |
| Ukuran selang | 1/4 - 2,5 inci |
| Max. pembukaan | 31 mm |
| Set mati | 13 |
| Tipe set mati | P32 |
| Tekanan Sistem | 31.5 MPa |
| Keakuratan | 0.01 mm |
| Pengendalian | Negara anggota |
| Tegangan Standar | 220V / 380V |
| Kekuatan motor | 3.75 KW |
| Panjang | 650 mm |
| Lebar | 550 mm |
| Ketinggian | 1360 mm |
| Berat badan | 310 KG |
P32 Crimper Die Sets
| Tidak. | Jangkauan Crimping | Panjang |
|---|---|---|
| 6* | 6 - 8 mm | 55 |
| 8* | 8 - 10mm | 55 |
| 10* | 10 - 12 mm | 55 |
| 12* | 12 - 14 mm | 55 |
| 14 | 14 - 16mm | 55 |
| 16 | 16 - 19mm | 55 |
| 19 | 19 - 22mm | 55 |
| 22 | 22 - 26mm | 70 |
| 26 | 26 - 30mm | 70 |
| 30 | 30 - 34mm | 70 |
| 34 | 34 - 39mm | 75 |
| 39 | 39 - 45 mm | 75 |
| 45 | 45 - 51 mm | 90 |
| 51 | 51 - 57mm | 90 |
| 57 | 57 - 63mm | 100 |
| 63 | 63 - 69mm | 110 |
| 69 | 69 - 78mm | 110 |
Catatan Penting
- * menunjuk set die non-standar
- Set mati yang disesuaikan tersedia atas permintaan
- Pilihan tegangan khusus: 110V, 208V, 240V, 415V tersedia
