Mesin pengikat selang hidraulik P32CS
,P32CS Alat pengikat selang manual
,Baterai Mobil Ponsel Crimper Selang Manual
Mesin hidraulik otomotif P32CS
Deskripsi

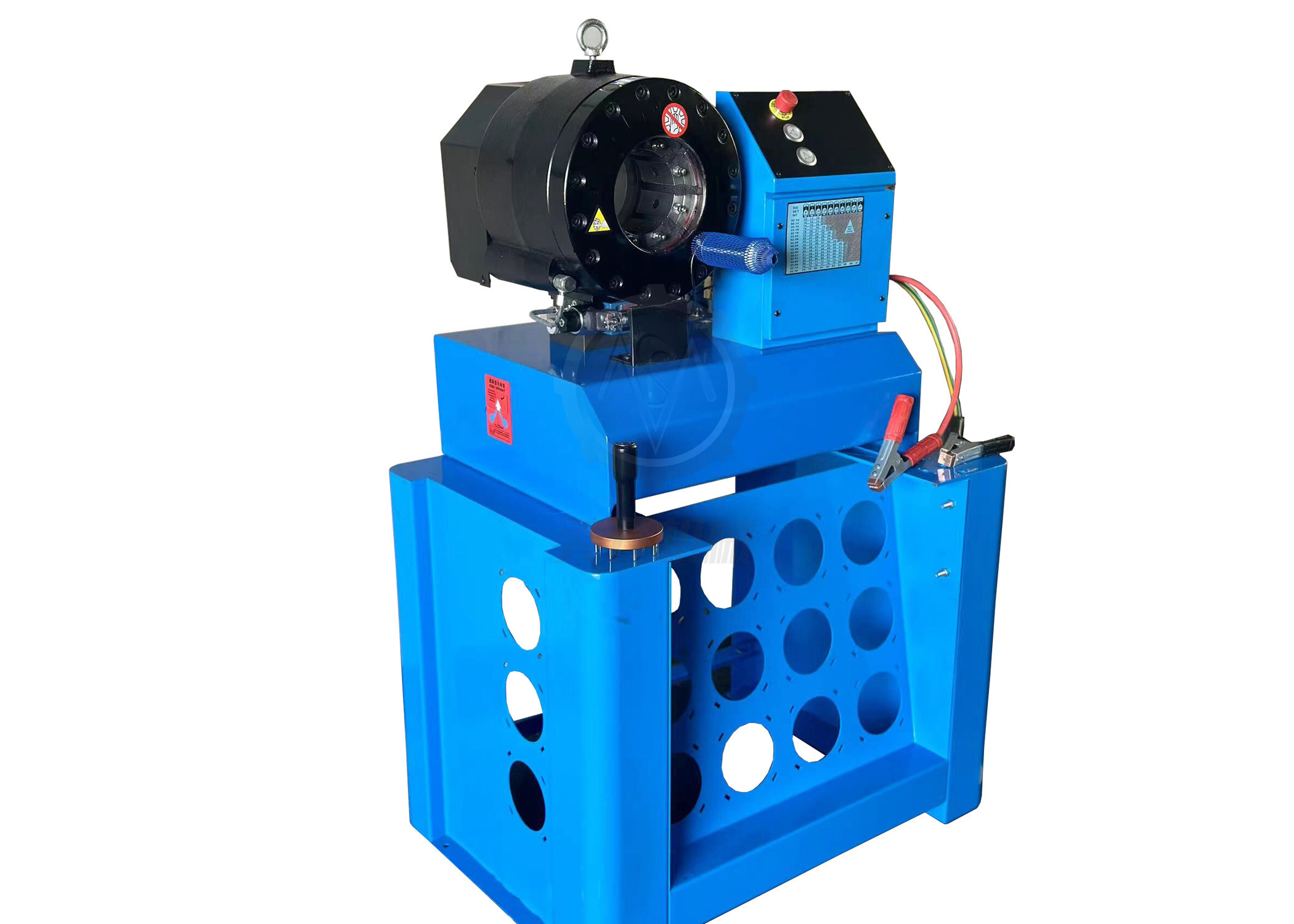

MS-P32CS hose crimper adalah pilihan yang ideal untuk bengkel yang melakukan layanan perbaikan kendaraan industri dan pertanian.jadi bisa dipasang di mobil.
Keuntungan
Kecepatan tinggi dan presisi
¢ Dasar die untuk meningkatkan efisiensi
️ Perubahan cepat untuk set mati, tidak perlu memasang set mati satu per satu
DATA TEKNIS
|
Model |
MS-P32CS Mesin Crimping Hose |
|
Jangkauan Crimping |
14 - 87 (mm) |
|
Kekuatan Crimping |
280 (T) |
|
Ukuran selang |
1/4 - 2,5 (inci) |
|
Max. pembukaan |
31 (mm) |
|
Set mati |
13 |
|
Tipe set mati |
P32 |
|
Tekanan Sistem |
28 (Mpa) |
|
Keakuratan |
0.01 (mm) |
|
Pengendalian |
Negara anggota |
|
Tegangan Standar |
24 (V) |
|
Kekuatan motor |
2.2 (KW) |
|
Panjang |
630 (mm) |
|
Lebar |
540 (mm) |
|
Ketinggian |
420 (mm) |
|
Berat badan |
150 (Kg) |
P32 SET PEMANGAT SIPULAN
|
Tidak. |
Jangkauan Crimping |
Panjang |
|
6* |
6... 8mm |
55 |
|
8* |
8... 10mm |
55 |
|
10* |
10... 12mm |
55 |
|
12* |
12... 14mm |
55 |
|
14 |
14... 16mm |
55 |
|
16 |
16... 19mm |
55 |
|
19 |
19... 22mm |
55 |
|
22 |
22... 26mm |
70 |
|
26 |
26... 30mm |
70 |
|
30 |
30... 34mm |
70 |
|
34 |
34... 39mm |
75 |
|
39 |
39... 45mm |
75 |
|
45 |
45... 51mm |
90 |
|
51 |
51... 57mm |
90 |
|
57 |
57... 63mm |
100 |
|
63 |
63... 69mm |
110 |
|
69 |
69... 76mm |
110 |
| 74* | 74... 80mm | 110 |
| 78* | 78... 87mm | 110 |
Catatan
• " * " untuk set die non standar
• Set mati khusus dengan ukuran bentuk yang berbeda tersedia
• Tegangan 12V tersedia
Opsional
• Alat Pergantian Cetakan Cepat
• Kotak Set Die
• Unit Pemasangan Mobil
-
