Spesifikasi
Menyoroti:
CNC High Pressure Hose Crimper
,P180 Crimper selang tekanan tinggi
,CNC Hydraulic Hose Crimper
Crimping Range:
14 - 127mm
Hose Size:
1/4 - 4 inci
Die Sets:
27
Color:
Abu-abu dan biru
Max. Opening:
80mm
Crimping Force:
980T
System Pressure:
31,5Mpa
Power:
6.5kw
Size:
780*1050*1650mm
Weight:
1520kg
Atribut Utama
Nama merek:
MENSION
Nomor Model:
MS-P180
Tempat Asal:
CN
Sertifikasi:
CE RoHS
Jumlah Pesanan Minimum:
1 set
Harga:
Contact Us
Kemampuan Pasokan:
1000 set per bulan
Waktu Pengiriman:
2 - 7 Hari Kerja
Ketentuan Pembayaran:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Kemasan Standar:
Satu Kayu Lapis Untuk Satu Set
Deskripsi Produk

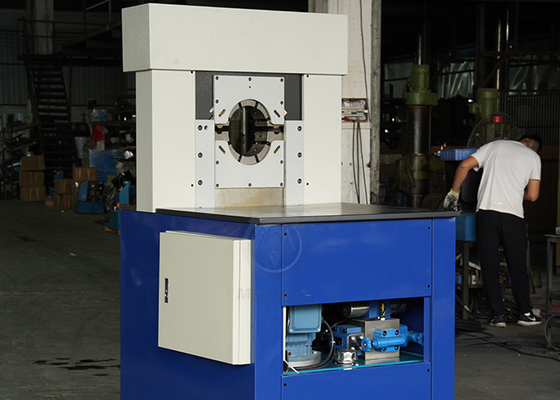

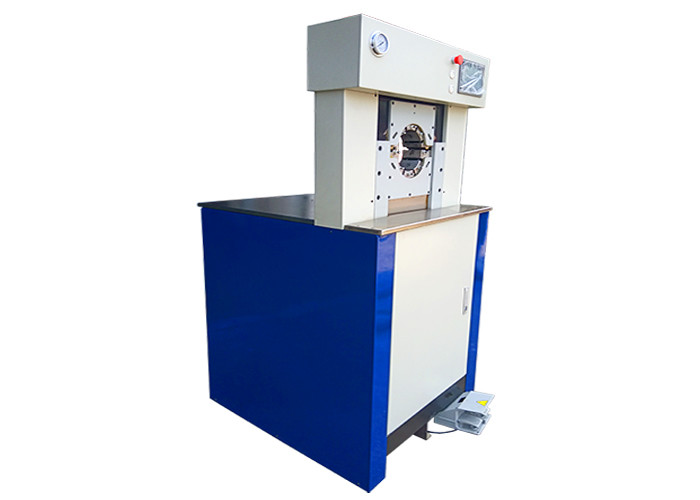

MS-P180 Crimper selang tekanan tinggi
MS-P180 adalah mesin crimping selang hidrolik tugas berat yang dirancang untuk menekan perakitan selang fleksibel dan industri.Crimper kuat ini dapat menangani kabel baja hidraulik selang dipintal hingga 4 inci diameter.
Fitur Utama
- Kapasitas pembukaan yang besar
- Keakuratan crimping presisi tinggi
- Stabilitas kinerja yang sangat baik
- Operasi low noise
Spesifikasi Teknis
| Model | MS-P180 Crimper selang |
|---|---|
| Jangkauan Crimping | 14 - 127 (mm) |
| Kekuatan Crimping | 980 (T) |
| Ukuran selang | 1/4 - 4 (inci) |
| Max. pembukaan | 80 mm |
| Set mati | 27 |
| Tipe set mati | P32 P180 |
| Tekanan Sistem | 31.5 (Mpa) |
| Keakuratan | 0.01 (mm) |
| Pengendalian | UC |
| Tegangan Standar | 380 (V) |
| Kekuatan motor | 3.75 (KW) |
| Panjang | 780 (mm) |
| Lebar | 1050 (mm) |
| Ketinggian | 1650 (mm) |
| Berat badan | 1520 (KG) |
P180 Crimper Die Sets
| Tidak. | Jangkauan Crimping | Panjang |
|---|---|---|
| 6* | 6 - 8 mm | 55 |
| 8* | 8 - 10mm | 55 |
| 10* | 10 - 12 mm | 55 |
| 12* | 12 - 14 mm | 55 |
| 14 | 14 - 16mm | 55 |
| 16 | 16 - 19mm | 55 |
| 19 | 19 - 22mm | 55 |
| 22 | 22 - 26mm | 70 |
| 26 | 26 - 30mm | 70 |
| 30 | 30 - 34mm | 70 |
| 34 | 34 - 39mm | 75 |
| 39 | 39 - 45 mm | 75 |
| 45 | 45 - 51 mm | 90 |
| 51 | 51 - 57mm | 90 |
| 57 | 57 - 63mm | 100 |
| 63 | 63 - 69mm | 110 |
| 69 | 69 - 74mm | 110 |
| 74 | 74 - 80 mm | 110 |
| 78 | 78 - 87mm | 110 |
| 84 | 84 - 92mm | 110 |
| 92 | 92 - 100 mm | 120 |
| 100 | 100 - 108 mm | 120 |
| 108 | 108 - 116mm | 120 |
| 116 | 116 - 126mm | 120 |
| 126 | 126 - 136mm | 120 |
| 136 | 136 - 146mm | 120 |
| 146 | 146 - 156mm | 120 |
| 156 | 156 - 166mm | 120 |
| 166 | 166 - 178mm | 120 |
| 178 | 178 - 190mm | 120 |
| 190 | 190 - 202mm | 120 |
* menunjuk set die non-standar
Set mati yang disesuaikan tersedia atas permintaan
Pilihan tegangan khusus: 110V, 208V, 240V, 415V
