Komplementer Control AC Hose Crimping Machine
,E38 AC Hose Crimping Machine
,Mesin crimping pipa AC bertekanan tinggi

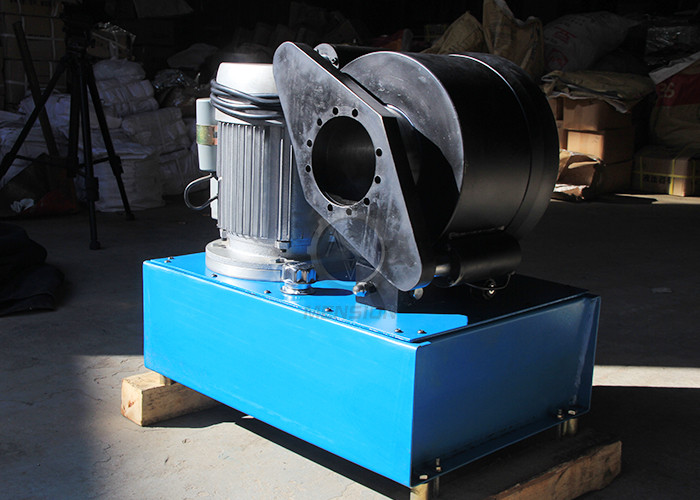

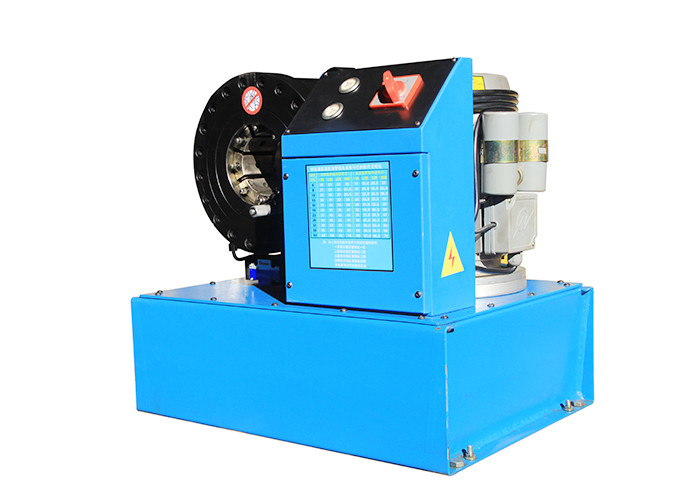

HYDRAULIC 2 INCH AC HOSE CRIMPING MACHINE MS-E38 (Mesin pengeringan selang AC 2 inci)
Deskripsi
MS-E38 AC hose crimper machine adalah model terbaru berdasarkan P32.itu bisa crimp selang tekanan tinggi hidrolik dari 1/4 sampai 2 inci, selang industri hingga 3 inci.
Fitur Utama
1. kekuatan crimping besar dengan struktur crimping bevel ganda;
2. panel desain manusia, mudah dipelajari;
3. Die set memilih tabel referensi, nyaman untuk pengguna baru;
4. Jerman sistem hidrolik berkualitas, umur panjang
DATA TEKNIS
|
Model |
MS-E38 AC Hose Crimping Machine |
|
Jangkauan Crimping |
14 - 87 (mm) |
|
Kekuatan Crimping |
640 (T) |
|
Ukuran selang |
1/4 - 2 (inci) 4SH |
|
Max. pembukaan |
31 (mm) |
|
Set mati |
10 |
|
Tipe set mati |
38 |
|
Tekanan Sistem |
31.5 (Mpa) |
|
Keakuratan |
0.01 (mm) |
|
Pengendalian |
Negara anggota |
|
Tegangan Standar |
220 (V) / 380 (V) |
|
Kekuatan motor |
4 (KW) |
|
Panjang |
630 (mm) |
|
Lebar |
450 mm |
|
Ketinggian |
600 (mm) |
|
Berat badan |
200 (Kg) |
| Minyak hidraulik | 50 (L) |
38 CRIMPER MACHINE DIE SET
|
Tidak. |
Jangkauan Crimping |
Panjang |
|
6* |
6 - 8 mm |
35 |
|
8* |
8 - 10 mm |
35 |
|
10* |
10 - 12 mm |
35 |
|
12* |
12 - 14 mm |
35 |
|
14 |
14 - 16 mm |
60 |
|
16 |
16 - 20 mm |
60 |
|
20 |
20 - 22 mm |
60 |
|
22 |
22 - 26 mm |
60 |
|
26 |
26 - 30 mm |
70 |
|
30 |
30 - 38 mm |
70 |
|
38 |
38 - 46 mm |
70 |
|
46 |
46 - 54 mm |
80 |
|
54 |
54 - 64 mm |
80 |
|
64 |
64 - 69 mm |
80 |
|
69* |
69 - 76 mm |
100 |
Catatan
1) Set mati yang disesuaikan tersedia dengan ukuran atau bentuk yang berbeda;
2) Tegangan khusus seperti 110V, 208V, 240V, 415V (60HZ) tersedia;
3) Pedal kaki tersedia untuk membuat tangan bebas;
4) * untuk set die non standar.
-
