NC130 Crimper selang tekanan tinggi
,Alat Pengikat Selang Tekanan Tinggi
,mesin pengikat selang hidraulik bertekanan tinggi

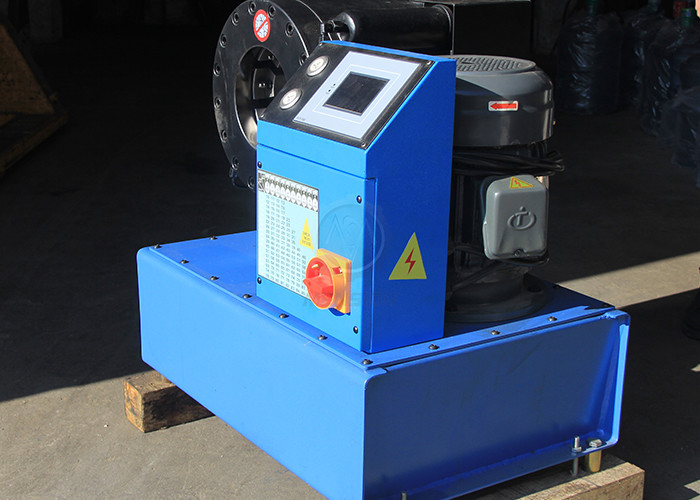

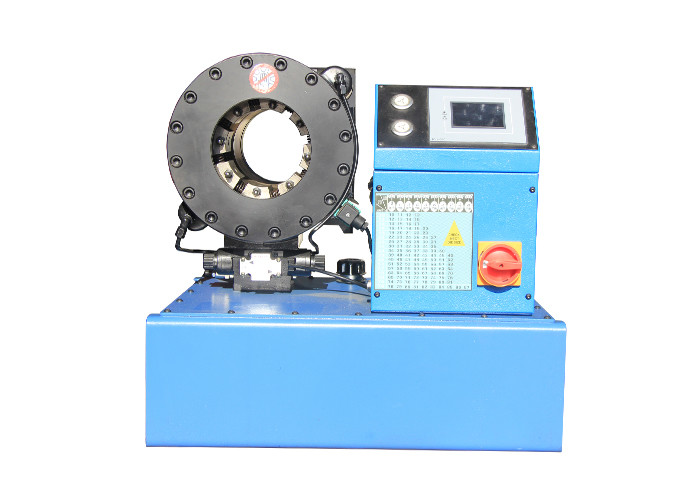

Tekan tinggi selang CRIMPER MS-NC130
Deskripsi
MS-NC130 mesin penekanan hidrolik adalah crimping dengan kekuatan crimping besar dan tekanan.Ini adalah pilihan yang ideal untuk pembuatan perakitan selang hidrolik, kawat dan kabel menekan, industri tabung dan pipa koneksi.
Keuntungan dari NC130
1. Sistem kontrol CNC canggih, stabilitas tinggi;
2. Tekanan menahan membuat selang setelah crimping lebih kuat;
3. Ruler listrik dengan kinerja yang stabil;
4. desain unik master mati, teknologi terkenal di dunia.
DATA TEKNIS
|
Model |
MS-NC130 Mesin Crimping |
|
Jangkauan Crimping |
14 - 87 (mm) |
|
Kekuatan Crimping |
650 (T) |
|
Ukuran selang |
1/4 - 2,5 (inci) |
|
Max. pembukaan |
31 (mm) |
|
Set mati |
13 |
|
Tipe set mati |
P32 |
|
Tekanan Sistem |
31.5 (Mpa) |
|
Keakuratan |
0.01 (mm) |
|
Pengendalian |
Negara anggota |
|
Tegangan Standar |
220 (V) / 380 (V) |
|
Kekuatan motor |
3.75 (KW) |
|
Panjang |
650 (mm) |
|
Lebar |
550 (mm) |
|
Ketinggian |
650 (mm) |
|
Berat badan |
240 (Kg) |
P32 SET PEMANGAT SIPULAN
|
Tidak. |
Jangkauan Crimping |
Panjang |
|
6* |
6 - 8 mm |
55 |
|
8* |
8 - 10mm |
55 |
|
10* |
10 - 12 mm |
55 |
|
12* |
12 - 14 mm |
55 |
|
14 |
14 - 16mm |
55 |
|
16 |
16 - 19mm |
55 |
|
19 |
19 - 22mm |
55 |
|
22 |
22 - 26mm |
70 |
|
26 |
26 - 30mm |
70 |
|
30 |
30 - 34mm |
70 |
|
34 |
34 - 39mm |
75 |
|
39 |
39 - 45 mm |
75 |
|
45 |
45 - 51 mm |
90 |
|
51 |
51 - 57mm |
90 |
|
57 |
57 - 63mm |
100 |
|
63 |
63 - 69mm |
110 |
|
69 |
69 - 78mm |
110 |
Catatan
- * untuk set die non standar;
- Set mati yang disesuaikan tersedia;
- Tegangan khusus 110V, 208V, 240V, 415V tersedia;
-
