4 Inch Hydraulic Hose Crimping Machine Pembukaan Besar Crimper Selang Industri

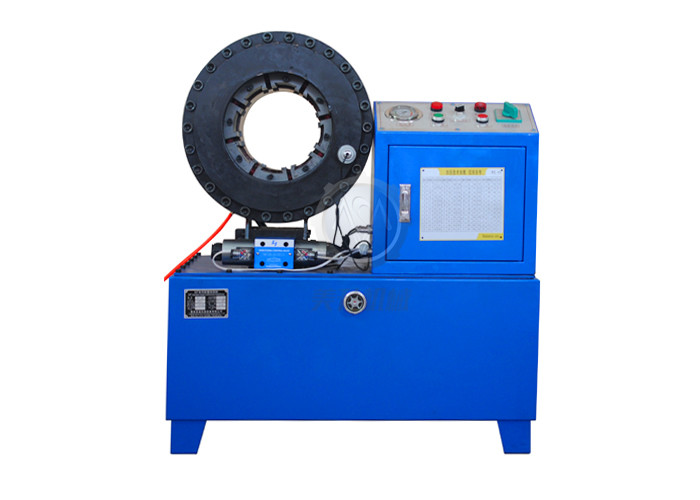

4 INCH HYDRAULIC HOSE CRIMPING MACHINE S102 (Mesin pengeringan selang hidraulik 4 inci)
Deskripsi
MS-S102 adalah mesin penekan selang hidrolik 4 inci 6sp dengan kepala pembukaan yang besar.Ini memiliki 16 mati standar dan satu adaptor mati set yang memungkinkan untuk crimp ukuran kecil selang tekanan tinggi dari 1/4 'inci dan diameter besar selang fleksibel hingga 4' inci.
Set mati dengan pemrosesan frekuensi tinggi, sehingga dengan kekerasan tinggi dan juga polishing akhir yang tepat membuatnya lebih tepat untuk baja karbon ferrule menekan, untuk melindungi permukaan selama crimping.
Keuntungan Utama
1. Untuk selang tekanan tinggi dan industri dari 1/4 " hingga 4"
2. kekuatan menekan besar dan kepala pembukaan besar;
3. desain ergonomis, cocok untuk pekerja beroperasi;
4. pompa minyak flue besar berkualitas tinggi.
DATA TEKNIS
|
Model |
MS-S102 Mesin Crimping Selang Hidraulik |
|
Jangkauan Crimping |
14 - 187 (mm) |
|
Kekuatan Crimping |
1500 (T) |
|
Ukuran selang |
1/4 - 4 (inci) 6 Lapisan |
|
Max. pembukaan |
30 mm |
|
Set mati |
16 + 1 |
|
Tipe set mati |
51 + 102 |
|
Tekanan Sistem |
31.5 (Mpa) |
|
Keakuratan |
0.05 (mm) |
|
Pengendalian |
Negara anggota |
|
Tegangan Standar |
220 (V) / 380 (V) |
|
Kekuatan motor |
4 (KW) |
|
Panjang |
850 mm |
|
Lebar |
530 (mm) |
|
Ketinggian |
980 (mm) |
|
Berat badan |
510 (Kg) |

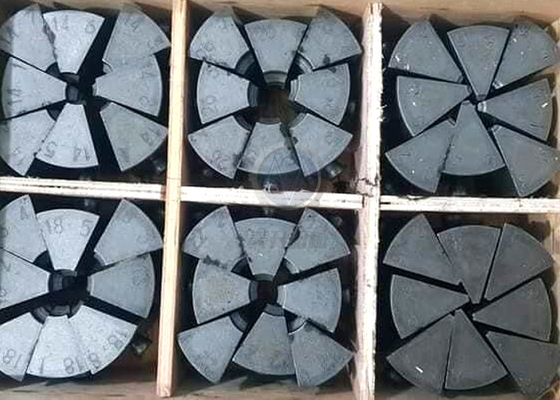

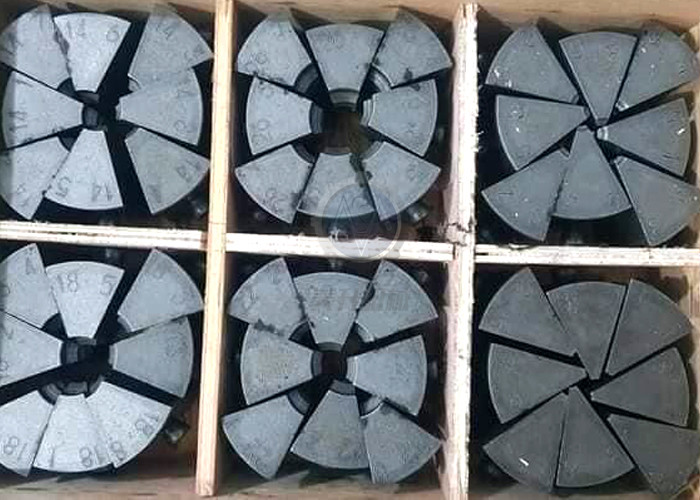

S102 SET SET KERANTAS SIPULAN
|
Tidak. |
Jangkauan Crimping |
Panjang |
|
6* |
6 - 8 mm |
35 |
|
8* |
8 - 10 mm |
35 |
|
10* |
10 - 12 mm |
35 |
|
12* |
12 - 15 mm |
35 |
|
15 |
15 - 19 mm |
60 |
|
19 |
19 - 23 mm |
60 |
|
23 |
23 - 26 mm |
60 |
|
26 |
26 - 31 mm |
60 |
|
31 |
31 - 36 mm |
70 |
|
36 |
36 - 41 mm |
70 |
|
41 |
41 - 47 mm |
70 |
|
47 |
47 - 55 mm |
80 |
|
55 |
55 - 63 mm |
80 |
|
63 |
63 - 75 mm |
80 |
|
75 |
75 - 87 mm |
100 |
| 87 | 87 - 100 mm | 120 |
| 100 | 100 - 115 mm | 120 |
| 115 | 115 - 130 mm | 120 |
| 130 | 130 - 147 mm | 120 |
Catatan
- * untuk set die non standar;
- Set mati yang disesuaikan tersedia;
- Tegangan khusus 110V, 208V, 240V, 415V tersedia;
Opsional
- Alat Perubahan Cepat
- Kontrol UC;
