6SP Mesin Crimping Selang Tekanan Tinggi
,Hydraulic 2 Inch Hose Crimping Machine
,Biru 2 Inch Hose Crimping Mesin
Alat Penekan Pipa Hidraulik 2 Inch 6SP Mesin Crimping Selang Tekanan Tinggi

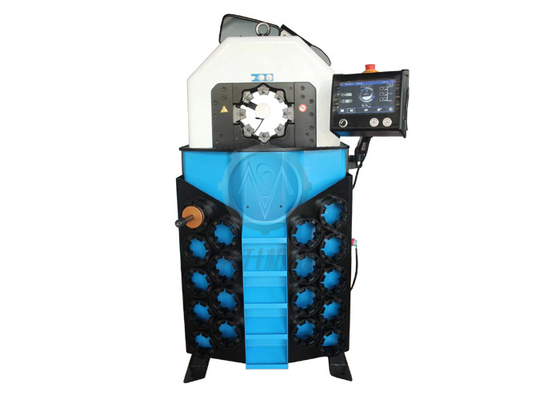

2' 6SP HYDRAULIC HOSE CRIMPING MACHINE P140 (Mesin pengeringan selang hidrolik)
Deskripsi
P140 hidraulik selang crimper cocok untuk tekanan tinggi hidraulik selang karet hingga 2 '' inci 6SP spiral menekan. Ini dilengkapi dengan 18 set mati dan satu set adaptor mati. ukuran selang max itu bisa crimp adalah 4 'inci selang industri. Ketika produksi untuk perakitan selang perlu besar,ini P140 selang mesin crimping akan menjadi pilihan terbaik.
Keuntungan
1) Keakuratan tinggi dengan dial kontrol diameter canggih,
2) Cocok bahkan untuk penyesuaian siku besar,
3) Diameter bukaan mulut dapat disesuaikan,
4) Fungsi angka crimping.
DATA TEKNIS
|
Model |
P140 Mesin Crimping Hose Hydraulic |
|
Jangkauan Crimping |
6 - 220 (mm) |
|
Kekuatan Crimping |
320 (T) |
|
Ukuran selang |
1/4' - 2' (inci) 6SP |
|
Max. pembukaan |
82 mm |
|
Set mati |
18 |
|
Tipe set mati |
P32 & P140 |
|
Tekanan Sistem |
31.5 (Mpa) |
|
Keakuratan |
0.01 (mm) |
|
Pengendalian |
UC |
|
Tegangan Standar |
220 (V) |
|
Kekuatan motor |
3 (KW) |
|
Panjang |
950 (mm) |
|
Lebar |
880 (mm) |
|
Ketinggian |
1750 (mm) |
|
Berat badan |
1100 (Kg) |
P140 PEMERINTAH PEMERINTAH PEMERINTAH
P32 Mati
|
Tidak. |
Jangkauan Crimping |
Panjang |
|
6* |
6 - 8 mm |
55 |
|
8* |
8 - 10mm |
55 |
|
10* |
10 - 12 mm |
55 |
|
12* |
12 - 14 mm |
55 |
|
14 |
14 - 16mm |
55 |
|
16 |
16 - 19mm |
55 |
|
19 |
19 - 22mm |
55 |
|
22 |
22 - 26mm |
70 |
|
26 |
26 - 30mm |
70 |
|
30 |
30 - 34mm |
70 |
|
34 |
34 - 39mm |
75 |
|
39 |
39 - 45 mm |
75 |
|
45 |
45 - 51 mm |
90 |
|
51 |
51 - 57mm |
90 |
|
57 |
57 - 63mm |
100 |
| 63 | 63 - 69mm | 110 |
| 69 | 69 - 74mm | 110 |
| 74 | 74 - 78mm | 110 |
| 78 | 78 - 84mm | 110 |
P140 Mati
| 84 | 84 - 92mm | 110 |
| 92 | 92- 100mm | 110 |
| 100 | 100 - 108 mm | 110 |
| 108* | 108 - 116mm | 110 |
| 116* | 116 - 126mm | 110 |
| 126* | 126 - 136mm | 110 |
Catatan
1) Set mati crimping yang disesuaikan tersedia;
2) Tegangan khusus 110V, 208V, 240V, 415V tersedia;
3) * untuk set die non standar;
4) Dengan satu adaptor mati.
Aksesoris
1) Alat Ganti Die Cepat;
2) Die Set Rack/ Mesin Stand;
3) UC/CNC Control;
4) Switch Pedal Kaki;
5) Cermin penggaruk;
6) Hentikan darurat;
7) Perangkat posisi belakang.
Aplikasi untuk P140 HYDRAULIC CRIMPING MACHINE
-
