P32 Crimper selang hidrolik
,Mesin Portable Cable Crimping
,2 Inch Hydraulic Hose Crimper
HIDRAULIC HIGH PRESSURE HOSE CRIMPER MACHINE MS-E38 (Mesin penggiling selang tekanan tinggi hidrolik MS-E38)
Deskripsi

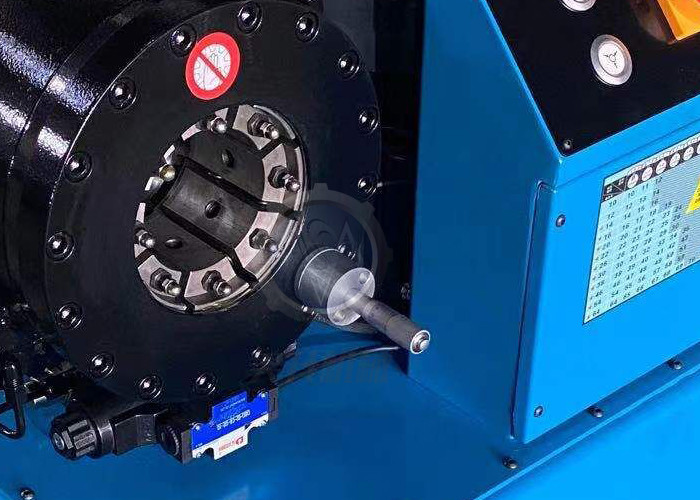

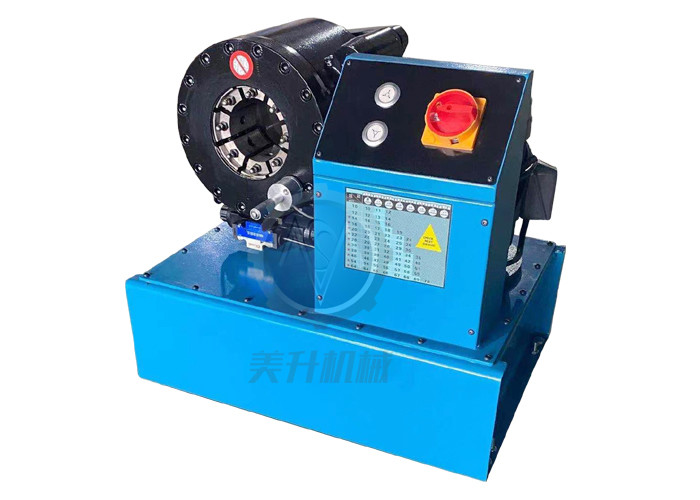

Mesin crimping selang karet MS-E38 adalah pilihan ideal untuk bengkel perbaikan mesin hidrolik dan industri. Ini dengan kekuatan crimping besar, mampu menekan fittings selang dari 1/4 inci sampai 2 inci dengan kawat baja tarik tinggi 4 lapisan dipintal. MS-E38 selang crimper adalah model kontrol MS,yang sangat mudah bagi pengguna untuk belajar operasiMesin crimping hidrolik dilengkapi dengan 10 set die sebagai standar.
Keuntungan
️ Cocok untuk selang karet dari 1/4 'ke 2' 'dengan 4 lapisan;
√ Crimping mati set dengan kekerasan tinggi, umur layanan yang panjang;
Desain mesin yang ergonomis, mudah dan nyaman;
¢ Pembukaan dan penutupan cepat untuk meningkatkan efisiensi crimping;
DATA TEKNIS
|
Model |
Mesin Penekan Pipa MS-E38 |
|
Jangkauan Crimping |
14 - 87 (mm) |
|
Kekuatan Crimping |
650 (T) |
|
Ukuran selang |
1/4 - 2 (inci) |
|
Max. pembukaan |
31 (mm) |
|
Set mati |
10 |
|
Tipe set mati |
38 |
|
Tekanan Sistem |
31.5 (Mpa) |
|
Keakuratan |
0.01 (mm) |
|
Pengendalian |
Negara anggota |
|
Tegangan Standar |
220 (V) |
|
Kekuatan motor |
3 (KW) |
|
Panjang |
630 (mm) |
|
Lebar |
450 mm |
|
Ketinggian |
600 (mm) |
|
Berat badan |
200 (Kg) |
E38 HIDROULIC CRIMPING MACHINE Die SET (Mesin pengeringan hidrolik)
|
Tidak. |
Jangkauan Crimping |
Panjang |
|
6* |
6... 8mm |
55 mm |
|
8* |
8... 10mm |
55 mm |
|
10* |
10... 12mm |
55 mm |
|
12* |
12... 14mm |
55 mm |
|
14 |
14... 16mm |
60 mm |
|
16 |
16... 20mm |
60 mm |
|
20 |
20... 22mm |
60 mm |
|
22 |
22... 26mm |
60 mm |
|
26 |
26... 30mm |
70 mm |
|
30 |
30... 38mm |
70 mm |
|
38 |
38... 46mm |
70 mm |
|
46 |
46... 54mm |
80 mm |
|
54 |
54... 64mm |
80 mm |
|
64 |
64... 69mm |
80 mm |
|
69* |
69... 74mm |
110 mm |
| 74* | 74... 78mm | 110 mm |
| 78* | 78... 87mm | 110 mm |
Catatan
• "*" untuk set die non-standar
• Set mati khusus tersedia
• Tegangan khusus 110V, 208V, 240V, 415V tersedia
Opsional
• Sistem kontrol UC
• Perangkat batas posisi
E38 Mesin pengering selang DISINI dengan sertifikat CE
Sertifikat mutu ISO 9001 untuk mesin pemotong selang
-
