2.5 Inci Tekanan Tinggi Hydraulic Hose Crimper
,Crimper Selang Hidraulik Tekanan Tinggi 4 Lapisan
,4 Lapisan Hydraulic Hose Crimper

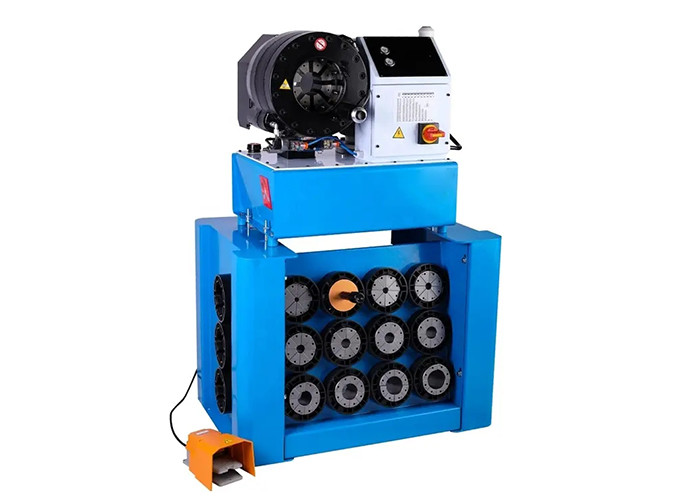

2.5 INCH HYDRAULIC HOSE CRIMPER MACHINE P32MS
Deskripsi
MS-E130 (sekarang P32MS) mesin penekanan pipa mendukung selang tekanan tinggi hidrolik hingga 4 lapisan 2-1/2 'dan selang industri hingga 3' pembuatan.Ini adalah Finn gaya selang power crimper dengan suku cadang impor dari merek terkenal, kinerja operasi yang tahan lama.
Keuntungan
Efisiensi tinggi
Konsistensi produk yang baik
Operasi sederhana
️ Keakuratan tinggi
DATA TEKNIS
|
Model |
P32MS Crimper selang |
|
Jangkauan Crimping |
14 - 87 (mm) |
|
Kekuatan Crimping |
650 (T) |
|
Ukuran selang |
1/4 - 2,5 (inci) |
|
Max. pembukaan |
31 (mm) |
|
Set mati |
13 |
|
Tipe set mati |
P32 |
|
Tekanan Sistem |
31.5 (Mpa) |
|
Keakuratan |
0.01 (mm) |
|
Pengendalian |
Negara anggota |
|
Tegangan Standar |
220 (V) |
|
Kekuatan motor |
3 (KW) |
|
Panjang |
650 (mm) |
|
Lebar |
550 (mm) |
|
Ketinggian |
1360 (mm) |
|
Berat badan |
310 (Kg) |

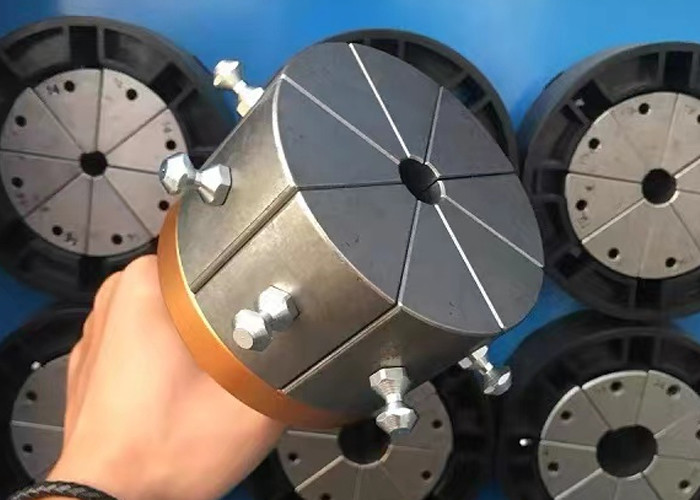

P32MS CRIMPER DIE SET
|
Tidak. |
Jangkauan Crimping |
Panjang |
|
6* |
6... 8mm |
55 mm |
|
8* |
8... 10mm |
55 mm |
|
10* |
10... 12mm |
55 mm |
|
12* |
12... 14mm |
55 mm |
|
14 |
14... 16mm |
55 mm |
|
16 |
16... 19mm |
55 mm |
|
19 |
19... 22mm |
55 mm |
|
22 |
22... 26mm |
70 mm |
|
26 |
26... 30mm |
70 mm |
|
30 |
30... 34mm |
70 mm |
|
34 |
34... 39mm |
75 mm |
|
39 |
39... 45mm |
75 mm |
|
45 |
45... 51mm |
90 mm |
|
51 |
51... 57mm |
90 mm |
|
57 |
57... 63mm |
100 mm |
|
63 |
63... 69mm |
110 mm |
|
69 |
69... 74mm |
110 mm |
| 74* | 74... 78mm | 110 mm |
| 78* | 78... 87mm | 110 mm |
Catatan
• "*" untuk set die non-standar
• Set mati khusus tersedia
• Tegangan khusus 110V, 208V, 240V, 415V tersedia
Opsional
• Sistem kontrol UC
• Perangkat batas posisi
-
