Mesin Penekan Pipa Hidraulik 64mm
,2 Inch Hydraulic Hose Crimping Mesin
,31.5Mpa Mesin Penekanan Pipa Hidraulik

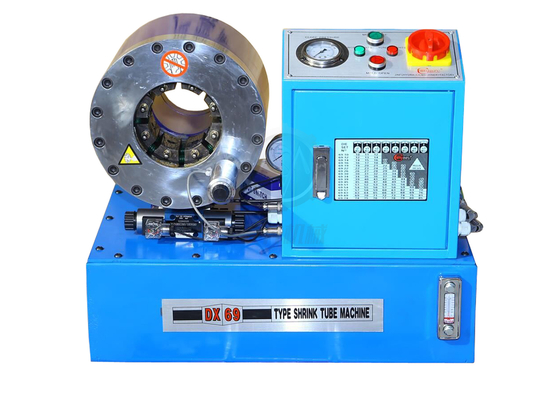

64mm Hydraulic Pipe Pressing Machine DX69 Untuk pembuatan tabung karet
HIDROULIC HOSE CRIMPING PRESS MACHINE MS - DX69 Mesin pencetak selang hidrolik MS - DX69
Deskripsi
MS-DX69 terkenal dengan kecepatan tinggi dan akurasi tinggi.Fase tunggal atau tiga fase dapat dibuat sesuai dengan kebutuhan.
Fitur
1. Crimping yang tepat dengan kekuatan besar;
2. Stabilitas tinggi dengan suku cadang berkualitas;
3. Desain yang ramah operator;
4. Mudah dioperasikan dan aman;
5Posisi belakang hidraulik.
DATA TEKNIS
|
Model |
DX - 69 Mesin Crimping |
|
Jangkauan Crimping |
14 - 87 (mm) |
|
Kekuatan Crimping |
640 (T) |
|
Ukuran selang |
1/4 - 2 (inci) 4 Lapisan |
|
Max. pembukaan |
25 mm |
|
Set mati |
10 |
|
Tipe set mati |
69 |
|
Tekanan Sistem |
31.5 (Mpa) |
|
Keakuratan |
0.01 (mm) |
|
Pengendalian |
Negara anggota |
|
Tegangan Standar |
220 (V) / 380 (V) |
|
Kekuatan motor |
3 (KW) / 4 (KW) |
|
Panjang |
630 (mm) |
|
Lebar |
450 mm |
|
Ketinggian |
560 (mm) |
|
Berat badan |
190 (Kg) |
69 CRIMPER DIE SET
|
Tidak. |
Jangkauan Crimping |
Panjang |
|
6* |
6 - 8 mm |
35 |
|
8* |
8 - 10 mm |
35 |
|
10* |
10 - 12 mm |
35 |
|
12* |
12 - 14 mm |
35 |
|
14 |
14 - 16 mm |
60 |
|
16 |
16 - 20 mm |
60 |
|
20 |
20 - 22 mm |
60 |
|
22 |
22 - 26 mm |
60 |
|
26 |
26 - 30 mm |
70 |
|
30 |
30 - 38 mm |
70 |
|
38 |
38 - 46 mm |
70 |
|
46 |
46 - 54 mm |
80 |
|
54 |
54 - 64 mm |
80 |
|
64 |
64 - 69 mm |
80 |
|
69* |
69 - 76 mm |
100 |
Catatan
1) Set mati yang disesuaikan tersedia;
2) Tegangan khusus 110V, 208V, 240V, 415V tersedia;
3) * untuk set die non standar.
Standar Pengiriman
1) Mesin Crimping selang
2) Pedal kaki;
3) 10 set mati;
4) Manual Operasi;
5) Aksesoris yang dapat digunakan.
Pilihan
1) Alat Perubahan Cepat;
2) Pergantian cepat Die Set Rack;
3) Kontrol UC;
-
