Spesifikasi
Menyoroti:
102mm Mesin Swaging Selang Hidraulik
,CE Mesin Swaging Selang Hidraulik
,Blue Hydraulic Hose Swager
Crimping Range:
14 - 187mm
Hose Size:
1/4 - 4 inci
Die Sets:
16+1
Color:
biru
Max. Opening:
45mm
Crimping Force:
980T
System Pressure:
31,5Mpa
Power:
7.5kw
Size:
850*530*980mm
Weight:
510kg
Atribut Utama
Nama merek:
MENSION
Nomor Model:
MS-S102
Tempat Asal:
CN
Sertifikasi:
CE RoHS
Jumlah Pesanan Minimum:
1 set
Harga:
Contact Us
Kemampuan Pasokan:
1000 set per bulan
Waktu Pengiriman:
2 - 7 Hari Kerja
Ketentuan Pembayaran:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Kemasan Standar:
Satu Kayu Lapis Untuk Satu Set
Deskripsi Produk

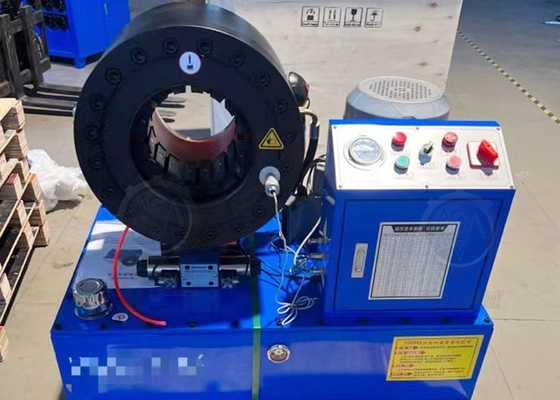

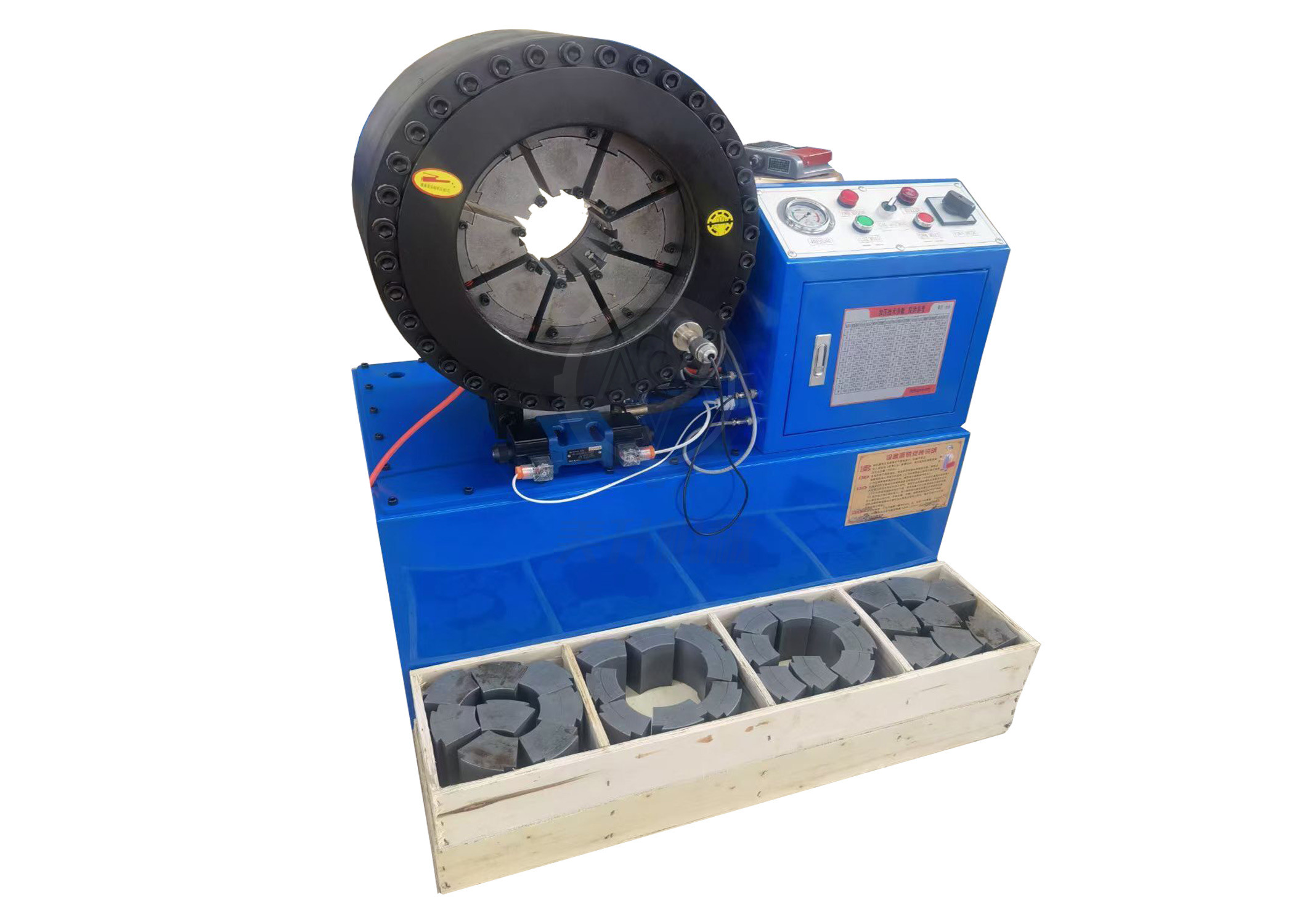

MS-S102 Mesin Crimping Selang Hidraulik
Mesin Swaging Selang Hidraulik 102mm yang dirancang untuk aplikasi penekanan pipa besar industri
Ringkasan Produk
MS-S102 hose crimper dirancang khusus untuk aplikasi selang hidrolik diameter besar.Mesin ini mampu menekan selang karet tekanan tinggi dari 1/4 inci untuk 4 inci (102mm) diameter dalam, membuatnya ideal untuk operasi skala industri.
Fitur Utama
- Crimping otomatis untuk operasi efisiensi tinggi
- Jangkauan selang yang luas untuk aplikasi serbaguna
- Struktur kompak untuk instalasi hemat ruang
Spesifikasi Teknis
| Model | MS-S102 Mesin Crimping Selang Hidraulik |
| Jangkauan Crimping | 14 - 187 (mm) |
| Kekuatan Crimping | 980 (T) |
| Ukuran selang | 1/4 - 4 (inci) |
| Max. pembukaan | 45 mm |
| Set mati | 16 + 1 |
| Tipe set mati | S102 |
| Tekanan Sistem | 31.5 (Mpa) |
| Keakuratan | 0.01 (mm) |
| Pengendalian | Negara anggota |
| Tegangan Standar | 380 (V) |
| Kekuatan motor | 7.5 (KW) |
| Panjang | 850 mm |
| Lebar | 530 (mm) |
| Ketinggian | 980 (mm) |
| Berat badan | 510 (Kg) |
S102 Mesin Crimping Die Sets
| Tidak. | Pengelompokan (mm) | Panjang (mm) |
|---|---|---|
| 6* | 6.0 - 8.0 | 55 |
| 8* | 8.0 - 10.0 | 55 |
| 10* | 10.0 - 12.0 | 55 |
| 12 | 12.0 - 15.0 | 55 |
| 15 | 15.0 - 19.0 | 55 |
| 19 | 19.0 - 23.0 | 55 |
| 23 | 23.0 - 26.0 | 55 |
| 26 | 26.0 - 31.0 | 55 |
| 31 | 31.0 - 36.0 | 55 |
| 36 | 36.0 - 41.0 | 75 |
| 41 | 41.0 - 47.0 | 75 |
| 47 | 47.0 - 55.0 | 90 |
| 55 | 55.0 - 63.0 | 90 |
| 63 | 63.0 - 75.0 | 100 |
| 75 | 75.0 - 87.0 | 110 |
| 87 | 87.0 - 100.0 | 110 |
| 100 | 100.0 - 115.0 | 120 |
| 115 | 115.0 - 130.0 | 120 |
| 130 | 130.0 - 145.0 | 120 |
• "*" menunjukkan set die non-standar
• Set mati yang disesuaikan tersedia atas permintaan
• Pilihan tegangan khusus tersedia: 110V, 208V, 240V, 415V
