Spesifikasi
Menyoroti:
Mesin Crimping Selang Tekanan Industri
,Mesin Crimping Selang Manusia Ergonomis
,Mesin Crimping Blue Hose
Crimping Range:
14 - 87mm
Hose Size:
1/4 - 2 1/2 inci
Die Sets:
13
Color:
biru
Max. Opening:
31mm
Crimping Force:
650T
System Pressure:
31,5Mpa
Power:
3kw
Size:
650*550*1360mm
Weight:
310Kg
Product Name:

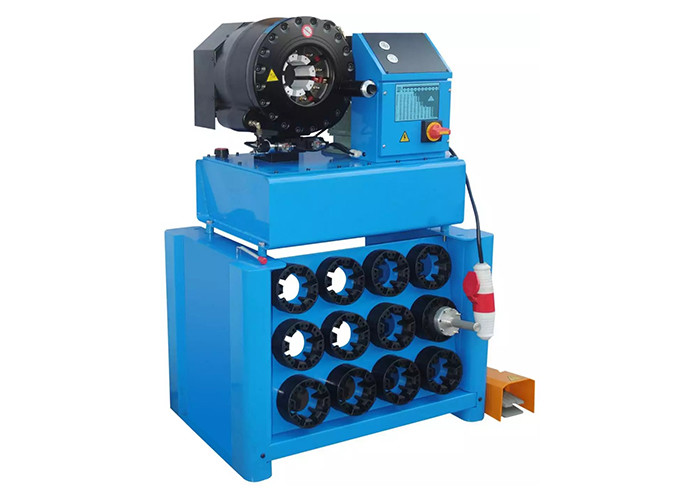

Mesin Crimping Selang Hidrolik E130-I
Atribut Utama
Nama merek:
MENSION
Nomor Model:
MS-E130-I
Tempat Asal:
CN
Sertifikasi:
CE RoHS
Jumlah Pesanan Minimum:
1 set
Harga:
Contact Us
Kemampuan Pasokan:
1000 set per bulan
Waktu Pengiriman:
2 - 7 Hari Kerja
Ketentuan Pembayaran:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Kemasan Standar:
Satu Kayu Lapis Untuk Satu Set
Deskripsi Produk
Mesin Pengering Selang Hidrolik Industri P32 Selang Pengering
Mesin Crimping Selang Tekanan Industri E130-I dengan desain yang berpusat pada manusia untuk kinerja dan kenyamanan operator yang optimal.
MS-E130-I Mesin crimping hidrolik
Mesin MS-E130-I tekanan selang crimping dengan daya hidrolik adalah pilihan yang disukai untuk produksi massal dari kumpulan selang. mampu crimping selang dari 1/8 "ke 2 1/2",dan kompatibel dengan selang industri 3".
Fitur Utama
- Die set rack untuk mudah dan aman die instalasi
- Double bevel master mati untuk akurasi tinggi dan kekuatan maksimum
- Pengendalian pedal dan tombol untuk peningkatan keselamatan dan produktivitas
- Pengendalian tombol yang ramah pelanggan untuk pengoperasian cepat dan mudah
Spesifikasi Teknis
| Model | MS-E130-I Mesin crimping hidrolik |
|---|---|
| Jangkauan Crimping | 14 - 87 (mm) |
| Kekuatan Crimping | 650 (T) |
| Ukuran selang | 1/4 - 2 1/2 (inci) |
| Max. pembukaan | 31 mm |
| Set mati | 13 |
| Tipe set mati | P32 |
| Tekanan Sistem | 31.5 (Mpa) |
| Keakuratan | 0.01 (mm) |
| Pengendalian | Negara anggota |
| Tegangan Standar | 220 (V) / 380 (V) |
| Kekuatan motor | 3 (KW) |
| Panjang | 650 (mm) |
| Lebar | 550 (mm) |
| Ketinggian | 1360 (mm) |
| Berat badan | 310 (Kg) |
P32 Mesin Crimping Die Sets
| Tidak. | Jangkauan Crimping | Panjang |
|---|---|---|
| 6* | 6 - 8 mm | 55 |
| 8* | 8 - 10mm | 55 |
| 10* | 10 - 12 mm | 55 |
| 12* | 12 - 14 mm | 55 |
| 14 | 14 - 16mm | 55 |
| 16 | 16 - 19mm | 55 |
| 19 | 19 - 22mm | 55 |
| 22 | 22 - 26mm | 70 |
| 26 | 26 - 30mm | 70 |
| 30 | 30 - 34mm | 70 |
| 34 | 34 - 39mm | 75 |
| 39 | 39 - 45 mm | 75 |
| 45 | 45 - 51 mm | 90 |
| 51 | 51 - 57mm | 90 |
| 57 | 57 - 63mm | 100 |
| 63 | 63 - 69mm | 110 |
| 69 | 69 - 78mm | 110 |
Catatan Penting
• * menunjukkan set die non-standar
• Set mati yang disesuaikan tersedia atas permintaan
• Pilihan tegangan khusus: 110V, 208V, 240V, 415V tersedia
