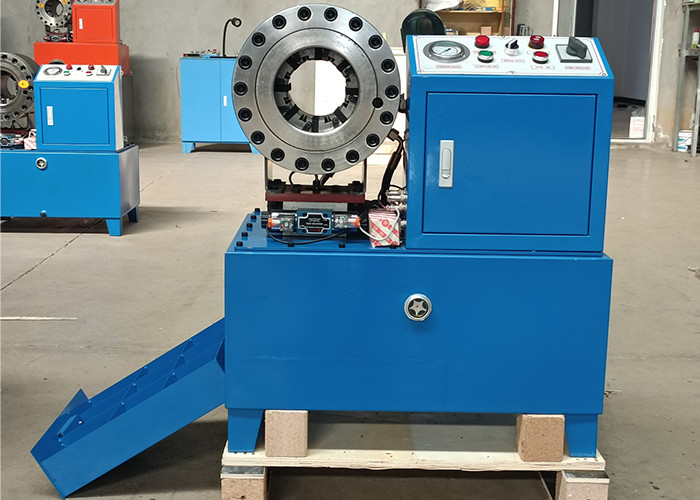

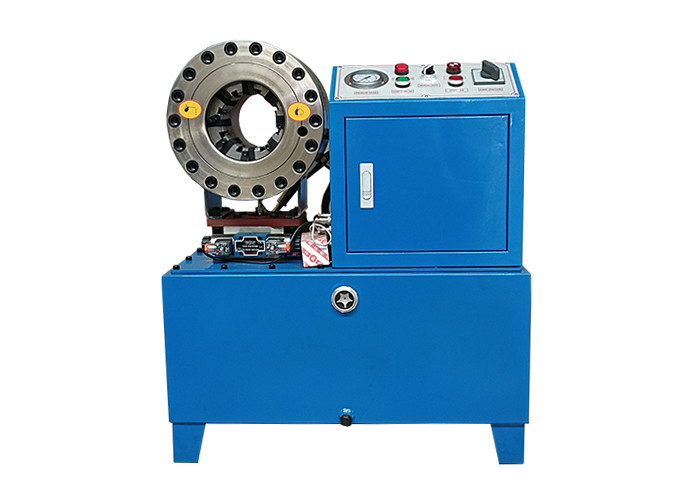

PEMBELAJARAN PILIH HIDRAULIK Mesin pengeringan selang MS-51
Deskripsi
MS-51 adalah mesin crimping hose press dasar dengan rentang crimping dari 1/4 inci hingga 2 inci. Crimping dapat dilakukan dengan pedal kaki atau tombol, dengan mode otomatis dan semi-otomatis.
Fitur Utama
1. Silinder crimping hidrolik ditempa, kekerasan tinggi;
2. Otomatis dan semi-otomatis;
3. Oil level ruler, lebih nyaman;
4. Pedal switch sebagai opsional, lebih fleksibel;
5. cahaya kerja untuk membuat crimping bekerja lebih jelas.
DATA TEKNIS
|
Model |
MS-51 Crimper selang |
|
Jangkauan Crimping |
14 - 87 (mm) |
|
Kekuatan Crimping |
500 (T) |
|
Ukuran selang |
1/4 - 2 (inci) |
|
Max. pembukaan |
30 mm |
|
Set mati |
10 |
|
Tipe set mati |
51 |
|
Tekanan Sistem |
31.5 (Mpa) |
|
Keakuratan |
0.05 (mm) |
|
Pengendalian |
Negara anggota |
|
Tegangan Standar |
220 (V) / 380 (V) |
|
Kekuatan motor |
3 (KW) |
|
Panjang |
670 (mm) |
|
Lebar |
430 (mm) |
|
Ketinggian |
820 (mm) |
|
Berat badan |
260 (Kg) |
51 HOSE CRIMPER DIE SET
|
Tidak. |
Jangkauan Crimping |
Panjang |
|
6* |
6 - 8 mm |
35 |
|
8* |
8 - 10mm |
35 |
|
10* |
10 - 12 mm |
35 |
|
12* |
12 - 15 mm |
35 |
|
15 |
15 - 19mm |
60 |
|
19 |
19 - 23mm |
60 |
|
23 |
23 - 26mm |
60 |
|
26 |
26 - 31mm |
60 |
|
31 |
31 - 36mm |
70 |
|
36 |
36 - 41mm |
70 |
|
41 |
41 - 47mm |
70 |
|
47 |
47 - 55mm |
80 |
|
55 |
55 - 63mm |
80 |
|
63 |
63 - 69mm |
80 |
|
69* |
69 - 76mm |
90 |
Catatan
- * untuk set die non standar;
- Set die yang disesuaikan dengan panjang bentuk yang berbeda tersedia;
- Tegangan khusus 110V, 208V, 240V, 415V tersedia;
Opsional
- Alat Perubahan Cepat;
- Cepat ganti Die Set Rack;
-
