Spesifikasi
Menyoroti:
14 - 87 mm mesin crimping selang karet hidrolik
,2 1/2 inci besar pipa mesin crimping
,1/4 inci selang karet crimper
Crimping Range:
14 - 87mm
Hose Size:
1/4 - 2 1/2 inci
Die Sets:
14
Color:
Abu-abu dan oranye
Max. Opening:
61mm
Crimping Force:
380T
Product Name:
Mesin Crimping Selang Karet P150
Application:
Bengkel
System Pressure:
31,5Mpa
Power:
3,75kw
Size:
720*970*1600mm
Weight:
1020kg
Atribut Utama
Nama merek:
MENSION
Nomor Model:
MS-P150
Tempat Asal:
CN
Sertifikasi:
CE RoHS
Jumlah Pesanan Minimum:
1 set
Harga:
Contact Us
Kemampuan Pasokan:
1000 set per bulan
Waktu Pengiriman:
2 - 7 Hari Kerja
Ketentuan Pembayaran:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Kemasan Standar:
Satu Kayu Lapis Untuk Satu Set
Deskripsi Produk
1/4 - 2 1/2 Inci Mesin Crimping Hose Karet Hidraulik

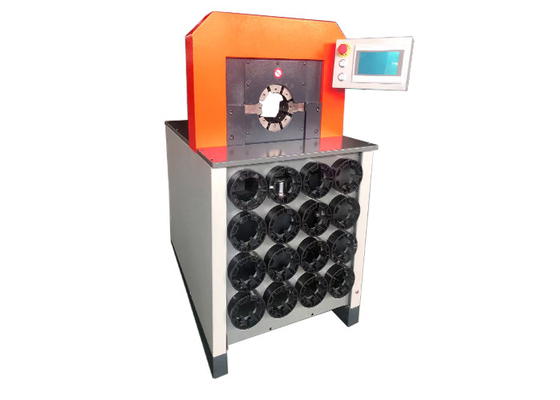

MS-P150 Mesin Crimping Selang Karet
Ringkasan Produk
MS-P150 adalah mesin crimping selang karet terbaru kami yang menampilkan kepala crimping super tipis yang memungkinkan pemasangan bantalan besar.meningkatkan produktivitas secara signifikan.
Keuntungan Utama
- Sistem kontrol CNC cerdas dengan kinerja yang stabil
- Operasi kecepatan tinggi
- Pedal kaki multifungsi
- Kepala crimping super tipis dengan saluran transfer minyak canggih
Spesifikasi Teknis
| Model | Crimper selang karet MS-P150 |
|---|---|
| Jangkauan Crimping | 14 - 87 (mm) |
| Kekuatan Crimping | 380 (T) |
| Ukuran selang | 1/4 - 2 1/2 (inci) |
| Max. pembukaan | 61 (mm) |
| Set mati | 14 |
| Tipe set mati | P150 |
| Tekanan Sistem | 31.5 (Mpa) |
| Keakuratan | 0.01 (mm) |
| Pengendalian | UC |
| Tegangan Standar | 220 (V) / 380 (V) |
| Kekuatan motor | 3.75 (KW) |
| Panjang | 720 (mm) |
| Lebar | 970 (mm) |
| Ketinggian | 1600 (mm) |
| Berat badan | 1020 (KG) |
P150 Mesin Crimping Die Sets
| Tidak. | Jangkauan Crimping | Panjang |
|---|---|---|
| 6* | 6 - 8 mm | 55 |
| 8* | 8 - 10 mm | 55 |
| 10* | 10 - 12 mm | 55 |
| 12* | 12 - 14 mm | 55 |
| 14 | 14 - 16 mm | 55 |
| 16 | 16 - 19 mm | 55 |
| 19 | 19 - 22 mm | 55 |
| 22 | 22 - 26 mm | 70 |
| 26 | 26 - 30 mm | 70 |
| 30 | 30 - 34 mm | 70 |
| 34 | 34 - 39 mm | 75 |
| 39 | 39 - 45 mm | 75 |
| 45 | 45 - 51 mm | 90 |
| 51 | 51 - 57 mm | 90 |
| 57 | 57 - 63 mm | 100 |
| 63 | 63 - 69 mm | 110 |
| 69 | 69 - 74 mm | 110 |
| 74 | 74 - 80 mm | 110 |
| 78* | 78 - 87 mm | 110 |
Catatan Penting
- * menunjukkan set die non-standar
- Set mati khusus tersedia
- Tegangan khusus (110V, 208V, 240V, 415V) tersedia
