Mesin penekanan pipa NC130-I
,Mesin Penekan Pipa Karet
,NC130-I Mesin pipa tekanan hidrolik

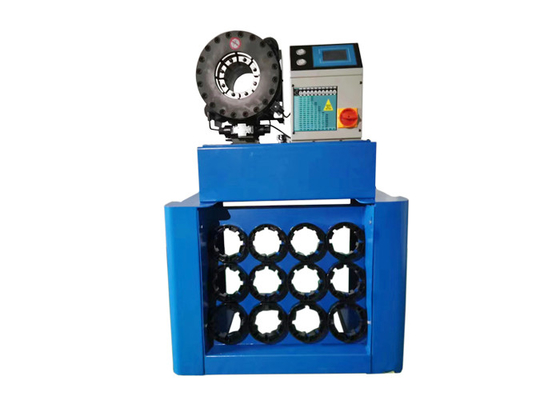

Mesin Penekan Selang Terkenal MS-NC130-I
Deskripsi
MS-NC130-I mesin crimping selang cocok untuk tekanan tinggi selang karet hidrolik crimping hingga 2,5 inci.
Keuntungan
1. suku cadang terkenal, mudah dibeli dari pasar lokal;
2Biaya pemeliharaan yang rendah;
3. Die set dengan perubahan cepat, efisiensi tinggi;
4. kekuatan besar dengan tingkat kebisingan rendah.
DATA TEKNIS
|
Model |
MS-NC130-I Mesin pengering selang |
|
Jangkauan Crimping |
14 - 87 (mm) |
|
Kekuatan Crimping |
650 (T) |
|
Ukuran selang |
1/4 - 2,5 (inci) |
|
Max. pembukaan |
31 (mm) |
|
Set mati |
13 |
|
Tipe set mati |
P32 |
|
Tekanan Sistem |
31.5 (Mpa) |
|
Keakuratan |
0.01 (mm) |
|
Pengendalian |
Negara anggota |
|
Tegangan Standar |
220 (V) / 380 (V) |
|
Kekuatan motor |
3.75 (KW) |
|
Panjang |
650 (mm) |
|
Lebar |
550 (mm) |
|
Ketinggian |
1360 (mm) |
|
Berat badan |
310 (Kg) |
P32 SERIES CRIMPER DIE SET
|
Tidak. |
Jangkauan Crimping |
Panjang |
|
6* |
6 - 8 mm |
55 |
|
8* |
8 - 10mm |
55 |
|
10* |
10 - 12 mm |
55 |
|
12* |
12 - 14 mm |
55 |
|
14 |
14 - 16mm |
55 |
|
16 |
16-19mm |
55 |
|
19 |
19 - 22mm |
55 |
|
22 |
22 - 26mm |
70 |
|
26 |
26 - 30mm |
70 |
|
30 |
30-34mm |
70 |
|
34 |
34 - 39mm |
75 |
|
39 |
39 - 45 mm |
75 |
|
45 |
45 - 51 mm |
90 |
|
51 |
51 - 57mm |
90 |
|
57 |
57 - 63mm |
100 |
|
63 |
63 - 69mm |
110 |
|
69 |
69 - 78mm |
110 |
Catatan
- * untuk set die non standar;
- Set mati yang disesuaikan tersedia;
- Tegangan khusus 110V, 208V, 240V, 415V tersedia;
-
SI've been running a hardware store for three years. This hydraulic crimping machine was the one I chose after comparing five different models. Initially, I was worried about the precision, so I tested over 20 high-pressure oil pipe connectors—each crimped perfectly in one go without any leaks. Now, customer feedback is great, and the repeat purchase rate is high
-
AThose who open a truck repair shop usually apply pressure to the brake oil pipe and hydraulic oil pipe of the truck. The manual version has sufficient pressure and the joint is tightly pressed. The truck runs long distances without oil leakage, which is recognized by the driver. The machine is durable and can be used in stores, as well as in places without electricity outdoors
-
MOutil hydraulique P32 très performant, sertissage parfait à chaque utilisation. Rapport qualité-prix imbattable, je recommande vivement cet équipement.
Silakan gunakan formulir kontak pertanyaan online kami di bawah ini jika Anda memiliki pertanyaan, tim kami akan menghubungi Anda sesegera mungkin
