Alat press selang fleksibel
,Alat menekan selang tekanan tinggi
,P150 mesin pemasangan pipa hidrolik

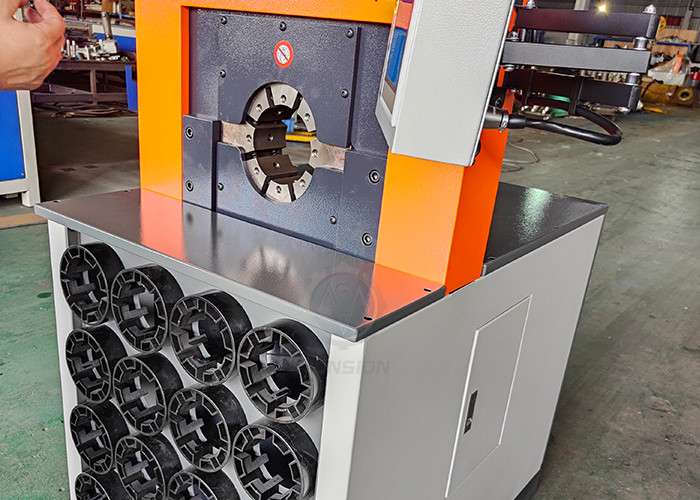

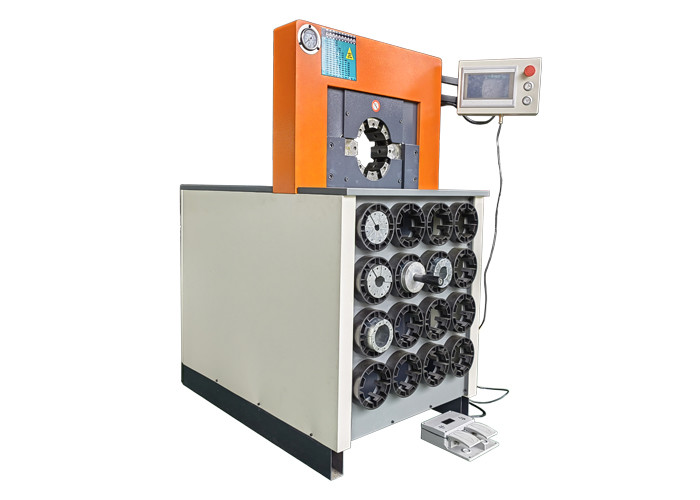

FLEXIBLE HOSE PRESSING MACHINE MS-P150 (Mesin untuk menekan selang yang fleksibel)
Deskripsi
MS-P150 mesin selang crimping hidrolik terkenal dengan ukuran crimping besar dan kapasitas makan yang besar.
Keuntungan
1. Die set dengan kekerasan tinggi;
2. Sistem kontrol CNC canggih, stabilitas tinggi;
3Perubahan cepat untuk set mati, efisiensi tinggi.
DATA TEKNIS
|
Model |
MS-P150 Mesin Pengikat Selang |
|
Jangkauan Crimping |
14 - 87 (mm) |
|
Kekuatan Crimping |
380 (T) |
|
Ukuran selang |
1/4 - 2 1/2 (inci) |
|
Max. pembukaan |
61 (mm) |
|
Set mati |
14 |
|
Tipe set mati |
P150 |
|
Tekanan Sistem |
31.5 (Mpa) |
|
Keakuratan |
0.01 (mm) |
|
Pengendalian |
UC |
|
Tegangan Standar |
220 (V) / 380 (V) |
|
Kekuatan motor |
3.75 (KW) |
|
Panjang |
720 (mm) |
|
Lebar |
970 (mm) |
|
Ketinggian |
1600 (mm) |
|
Berat badan |
1020 (KG) |
P150 SET PEMANGAT SIPULAN
|
Tidak. |
Jangkauan Crimping |
Panjang |
|
6* |
6 - 8 mm |
55 |
|
8* |
8 - 10mm |
55 |
|
10* |
10 - 12 mm |
55 |
|
12* |
12 - 14 mm |
55 |
|
14 |
14 - 16mm |
55 |
|
16 |
16 - 19mm |
55 |
|
19 |
19 - 22mm |
55 |
|
22 |
22 - 26mm |
70 |
|
26 |
26 - 30mm |
70 |
|
30 |
30 - 34mm |
70 |
|
34 |
34 - 39mm |
75 |
|
39 |
39 - 45 mm |
75 |
|
45 |
45 - 51 mm |
90 |
|
51 |
51 - 57mm |
90 |
|
57 |
57 - 63mm |
100 |
|
63 |
63 - 69mm |
110 |
|
69 |
69 - 74mm |
110 |
| 74 | 74 - 80 mm | 110 |
| 78* | 78 - 87mm | 110 |
Catatan
- * untuk set die non standar;
- Set mati yang disesuaikan tersedia;
- Tegangan khusus 110V, 208V, 240V, 415V tersedia;
-
