Mesin pencetak selang manual dengan pompa tangan
,Mesin pengikat selang rem manual
,Mesin Crimping p20hp
Mesin penghancur selang rem MS-P20HP
Deskripsi

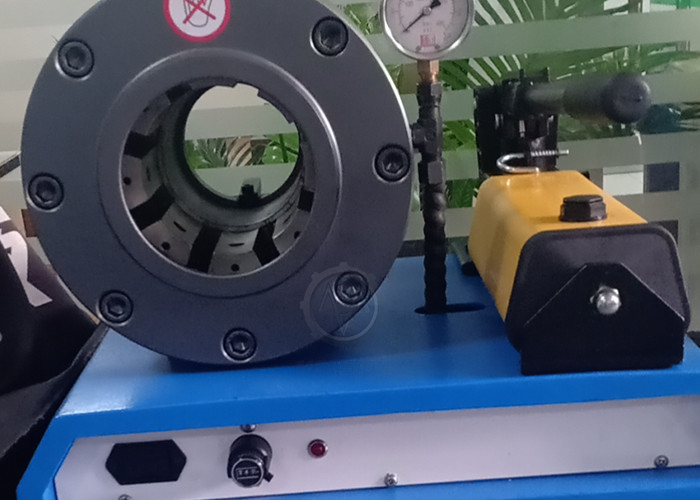

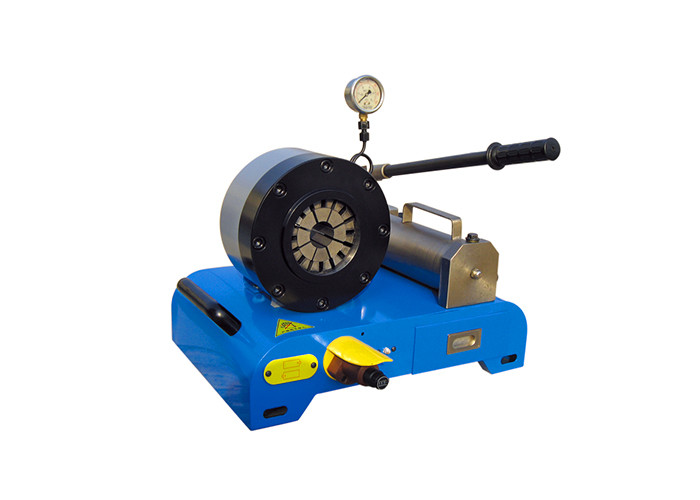

MS-P20HP adalah mesin pencetak selang portabel manual.telah banyak digunakan di situs crimping untuk selang minyak tekanan tinggi dan pipa dan kabel lainnya.
Keuntungan
1. bergerak dengan berat ringan dan ukuran kecil;
2Kekuatan besar;
3. Desain manusia mati set dengan kekerasan tinggi;
4Mikrometer dengan akurasi tinggi.
DATA TEKNIS
|
Model |
P20HP Crimper Selang Rem |
|
Jangkauan Crimping |
12 - 57 (mm) |
|
Kekuatan Crimping |
200 (T) |
|
Ukuran selang |
1/4 - 1 1/4 (inci) |
|
Max. pembukaan |
28 (mm) |
|
Set mati |
12 |
|
Tipe set mati |
P20 |
|
Tekanan Sistem |
31.5 (Mpa) |
|
Keakuratan |
0.01 (mm) |
|
Pengendalian |
Negara anggota |
|
Tegangan Standar |
Pompa manual |
|
Kekuatan motor |
Pompa manual |
|
Panjang |
550 (mm) |
|
Lebar |
520 (mm) |
|
Ketinggian |
400 (mm) |
|
Berat badan |
70 (Kg) |
P20 HOSE CRIMPER DIE SET
|
Tidak. |
Jangkauan Crimping |
Panjang |
|
6* |
6 - 8 mm |
55 |
|
8* |
8 - 10mm |
55 |
|
10* |
10 - 12 mm |
55 |
|
12 |
12 - 15 mm |
55 |
|
15 |
15 - 18 mm |
55 |
|
18 |
18 - 21mm |
55 |
|
21 |
21 - 24mm |
55 |
|
24 |
24 - 27mm |
55 |
|
27 |
27 - 30mm |
70 |
|
30 |
30 - 36 mm |
70 |
|
33 |
33 - 36mm |
70 |
| 36 | 36 - 39mm | 75 |
| 39 | 39 - 45 mm | 75 |
| 45 | 45 - 48 mm | 75 |
| 48 | 48 - 57mm | 90 |
Catatan
¤ * untuk set die non standar;
¤ Set die yang disesuaikan tersedia;
¤ Pembukaan maksimum adalah selang antara set mati yang benar-benar ditutup dan benar-benar dibuka.
Opsional
• Alat Perubahan Cepat
• Pergantian cepat Rack Set Die;
• Kontrol UC;
-
