Spesifikasi
Menyoroti:
500T digunakan mesin hidraulik selang crimping
,51L Dipakai Mesin Crimping Selang Hidraulik
,51L Mesin Crimping yang digunakan
Crimping Range:
14 - 87mm
Hose Size:
1/4 - 2 inci
Die Sets:
10
Color:
Biru
Max. Opening:
30mm
Crimping Force:
500T
Product Name:
51L Dipakai Mesin Crimping Selang Hidraulik
Application:
Bengkel
System Pressure:
31,5Mpa
Power:
3kw
Size:
800*640*1300mm
Weight:
320kg
Atribut Utama
Nama merek:
MENSION
Nomor Model:
MS-51L
Tempat Asal:
CN
Sertifikasi:
CE RoHS
Jumlah Pesanan Minimum:
1 set
Harga:
Contact Us
Kemampuan Pasokan:
1000 set per bulan
Waktu Pengiriman:
2 - 7 Hari Kerja
Ketentuan Pembayaran:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Kemasan Standar:
Satu Kayu Lapis Untuk Satu Set
Deskripsi Produk

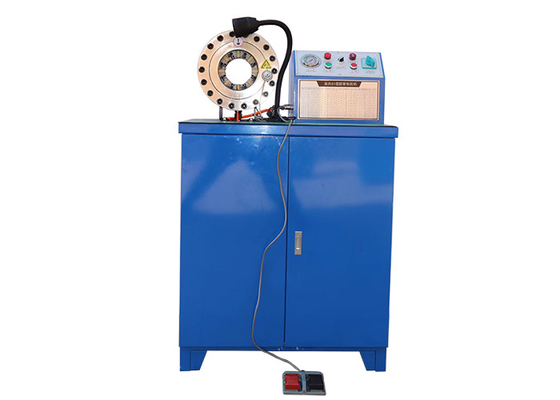

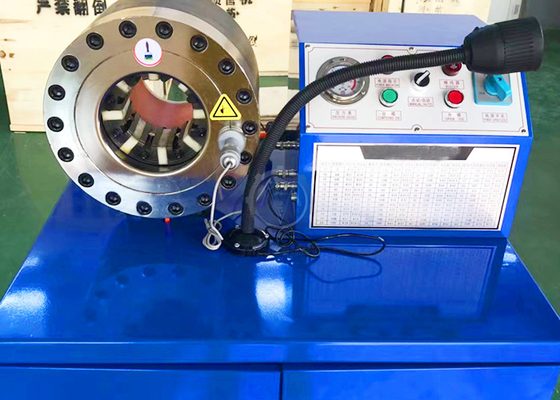

Mesin Klem Selang Hidrolik Bekas Dijual Finn Power Swage Hose End Crimper
MESIN KLEM SELANG HIDROLIK MS-51L BEKAS
DESKRIPSI
Mesin klem selang MS-51L memiliki desain ergonomis dengan ketinggian operator yang nyaman, mengurangi kelelahan selama pekerjaan klem. Mesin ini mendukung operasi klem semi-otomatis dan sepenuhnya otomatis.
KEUNGGULAN UTAMA
- Struktur sederhana dan ringkas untuk pemasangan dan perawatan yang mudah
- Klem pedal kaki dan tombol untuk kenyamanan yang ditingkatkan
- Mode klem otomatis secara signifikan meningkatkan efisiensi
- Pompa piston besar menghasilkan gaya tinggi dengan operasi kebisingan rendah
DATA TEKNIS
| Model | Mesin Klem Selang Hidrolik Bekas MS-51L |
|---|---|
| Rentang Klem | 14 - 87 (mm) |
| Gaya Klem | 500 (T) |
| Ukuran Selang | 1/4 - 2 (inci) |
| Bukaan Maks. | 30 (mm) |
| Set Cetakan | 10 |
| Tipe Set Cetakan | 51 |
| Tekanan Sistem | 31.5 (Mpa) |
| Akurasi | 0.05 (mm) |
| Kontrol | MS |
| Tegangan Standar | 220 (V) / 380 (V) |
| Daya Motor | 3 (KW) |
| Panjang | 800 (mm) |
| Lebar | 640 (mm) |
| Tinggi | 1300 (mm) |
| Berat | 320 (KG) |
SET CETAKAN KLEM SELANG 51
| No. Cetakan | Rentang Klem | Panjang |
|---|---|---|
| 6* | 6 - 8mm | 35 |
| 8* | 8 - 10mm | 35 |
| 10* | 10 - 12mm | 35 |
| 12* | 12 - 15mm | 35 |
| 15 | 15 - 19mm | 60 |
| 19 | 19 - 23mm | 60 |
| 23 | 23 - 26mm | 60 |
| 26 | 26 - 31mm | 60 |
| 31 | 31 - 36mm | 70 |
| 36 | 36 - 41mm | 70 |
| 41 | 41 - 47mm | 70 |
| 47 | 47 - 55mm | 80 |
| 55 | 55 - 63mm | 80 |
| 63 | 63 - 69mm | 80 |
| 69* | 69 - 76mm | 100 |
CATATAN
- * menunjukkan set cetakan non-standar
- Set cetakan yang disesuaikan tersedia
- Tegangan khusus 110V, 208V, 240V, 415V tersedia
OPSIONAL
- Alat Pengganti Cepat
- Kontrol UC
