Mesin Crimping Selang AC yang Aman
,SP32 AC Hose Crimping Machine
,SP32 ac hose crimper

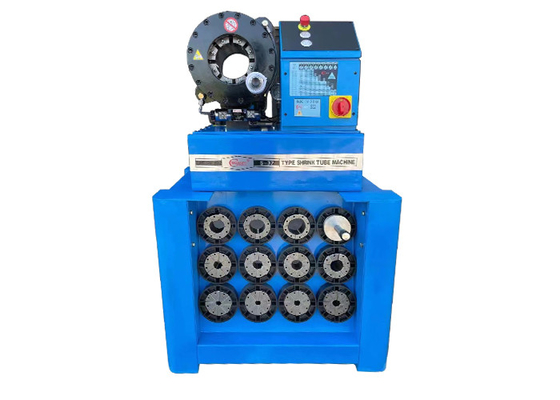

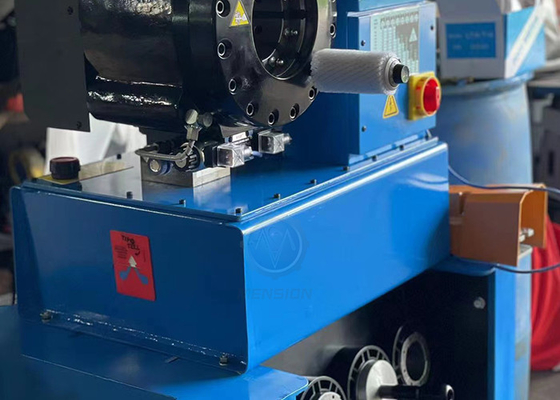

WORKSHOP AC HOSE CRIMPING MACHINE SP32 (Mesin pengeringan selang AC)
Deskripsi
MS-SP32 ac hose crimper machine adalah pilihan terbaik untuk produksi perakitan selang massal.Perangkat darurat berhenti membuatnya lebih aman.
Keuntungan
1Struktur sederhana, pemeliharaan mudah;
2Perangkat kontrol diameter canggih, presisi tinggi;
3. Perubahan cepat dan rak, meningkatkan efisiensi;
4- Stroke pembuka yang besar.
DATA TEKNIS
|
Model |
MS-SP32 AC Hose Crimping Machine |
|
Jangkauan Crimping |
14 - 87 (mm) |
|
Kekuatan Crimping |
650 (T) |
|
Ukuran selang |
1/4 - 2,5 (inci) |
|
Max. pembukaan |
31 (mm) |
|
Set mati |
13 |
|
Tipe set mati |
P32 |
|
Tekanan Sistem |
31.5 (Mpa) |
|
Keakuratan |
0.01 (mm) |
|
Pengendalian |
Negara anggota |
|
Tegangan Standar |
220 (V) / 380 (V) |
|
Kekuatan motor |
3.75 (KW) |
|
Panjang |
650 (mm) |
|
Lebar |
550 (mm) |
|
Ketinggian |
1360 (mm) |
|
Berat badan |
310 (Kg) |
P32 PENGELAMPURAN PENGELAMPURAN PENGELAMPUR
|
Tidak. |
Jangkauan Crimping |
Panjang |
|
6* |
6 - 8 mm |
55 |
|
8* |
8 - 10 mm |
55 |
|
10* |
10 - 12 mm |
55 |
|
12* |
12 - 14 mm |
55 |
|
14 |
14 - 16 mm |
55 |
|
16 |
16 - 19 mm |
55 |
|
19 |
19 - 22 mm |
55 |
|
22 |
22 - 26 mm |
70 |
|
26 |
26 - 30 mm |
70 |
|
30 |
30 - 34 mm |
70 |
|
34 |
34 - 39 mm |
75 |
|
39 |
39 - 45 mm |
75 |
|
45 |
45 - 51 mm |
90 |
|
51 |
51 - 57 mm |
90 |
|
57 |
57 - 63 mm |
100 |
|
63 |
63 - 69 mm |
110 |
|
69 |
69 - 78 mm |
110 |
Catatan
- * untuk set die non standar;
- Set mati yang disesuaikan tersedia;
- Tegangan khusus 110V, 208V, 240V, 415V tersedia;
-
AThose who open a truck repair shop usually apply pressure to the brake oil pipe and hydraulic oil pipe of the truck. The manual version has sufficient pressure and the joint is tightly pressed. The truck runs long distances without oil leakage, which is recognized by the driver. The machine is durable and can be used in stores, as well as in places without electricity outdoors
-
TAs a shop specializing in precision machinery, we have exceptionally high precision requirements for crimping machines. This equipment features adjustable crimping stroke with minimal error, ensuring oil-free connections after crimping. Even beginners can quickly learn—just 30 minutes of training enables them to operate it independently
-
MOutil hydraulique P32 très performant, sertissage parfait à chaque utilisation. Rapport qualité-prix imbattable, je recommande vivement cet équipement.
