31mm Mesin Hydraulic Hose Crimping
,SP32 Mesin Crimping Selang Hidraulik
,Crimper selang hidraulik dengan pembukaan cepat
Mesin HIDROULIC PIPE CRIMPING SP32
Deskripsi
SP32 adalah mesin crimper selang untuk perakitan selang fleksibel tekanan tinggi yang membuat dari 1/4 inci hingga 2,5 inci 1 kawat hingga 6 kawat.
Keuntungan
️ Perubahan cepat untuk set mati, sehingga set mati dapat diganti sekaligus

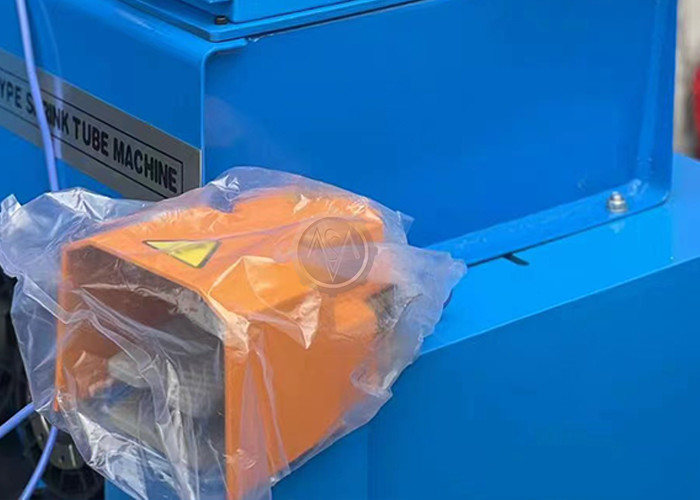

Pedal kaki membebaskan tangan
DATA TEKNIS
|
Model |
MS-SP32 Mesin Crimping |
|
Jangkauan Crimping |
14 - 87 (mm) |
|
Kekuatan Crimping |
650 (T) |
|
Ukuran selang |
1/4 - 2,5 (inci) |
|
Max. pembukaan |
31 (mm) |
|
Set mati |
13 |
|
Tipe set mati |
P32 |
|
Tekanan Sistem |
31.5 (Mpa) |
|
Keakuratan |
0.01 (mm) |
|
Pengendalian |
Negara anggota |
|
Tegangan Standar |
220 (V) / 380 (V) |
|
Kekuatan motor |
3.75 (KW) |
|
Panjang |
650 (mm) |
|
Lebar |
550 (mm) |
|
Ketinggian |
1360 (mm) |
|
Berat badan |
310 (Kg) |
P32 STANDARD DIE SET
|
Tidak. |
Pengelompokan (mm) |
Panjang (mm) |
|
6* |
6.0 - 8.0 |
55 |
|
8* |
8.0 - 10.0 |
55 |
|
10* |
10.0 - 12.0 |
55 |
|
12* |
12.0 - 14.0 |
55 |
|
14 |
14.0 - 16.0 |
55 |
|
16 |
16.0 - 19.0 |
55 |
|
19 |
19.0 - 22.0 |
55 |
|
22 |
22.0 - 26.0 |
70 |
|
26 |
26.0 - 30.0 |
70 |
|
30 |
30.0 - 34.0 |
70 |
|
34 |
34.0 - 39.0 |
75 |
|
39 |
39.0 - 45.0 |
75 |
|
45 |
45.0 - 51.0 |
90 |
|
51 |
51.0 - 57.0 |
90 |
|
57 |
57.0 - 63.0 |
100 |
|
63 |
63.0 - 69.0 |
110 |
|
69 |
69.0 - 74.0 |
110 |
| 74 | 74.0 - 78.0 | 110 |
| 78 | 78.0 - 87.0 | 110 |
Catatan
• " * " untuk set die non standar
• Set mati khusus tersedia
• Tegangan khusus 110V, 208V, 240V, 415V tersedia

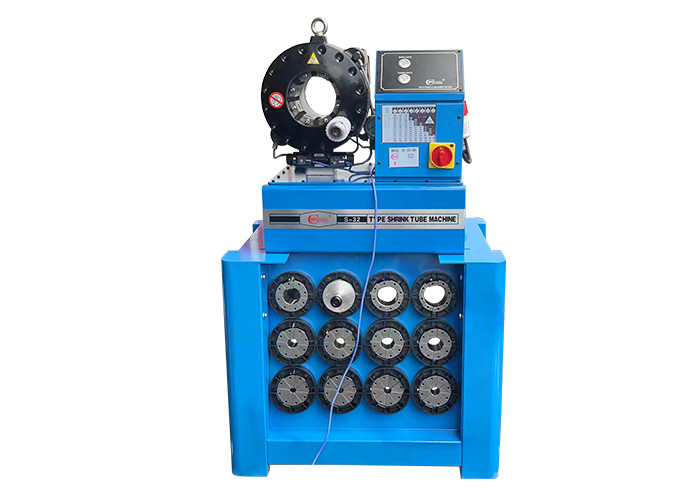

¢ Kualitas tinggi CR12MOV 13 DIE SET
13 mati set kekerasan 59-63HRC, dengan alat perubahan cepat, produktivitas meningkatkan banyak.
¢ Struktur KOMPAK
Kompak dalam struktur kecil volume, crimping dengan kekuatan besar
¢ Aplikasi
SP32 adalah selang crimper dengan konfigurasi tinggi, itu cocok untuk crimping tekanan tinggi stainless steel dipintal selang karet hidrolik, kabel dan kabel, baja besi persegi atau tabung bulat,saluran selang rem dalam sistem otomotif, suspensi udara atau pegas.
-
