Mesin Crimping Selang AC Berat Besar
,980T AC Hose Crimping Machine
,E180 aircon selang crimper

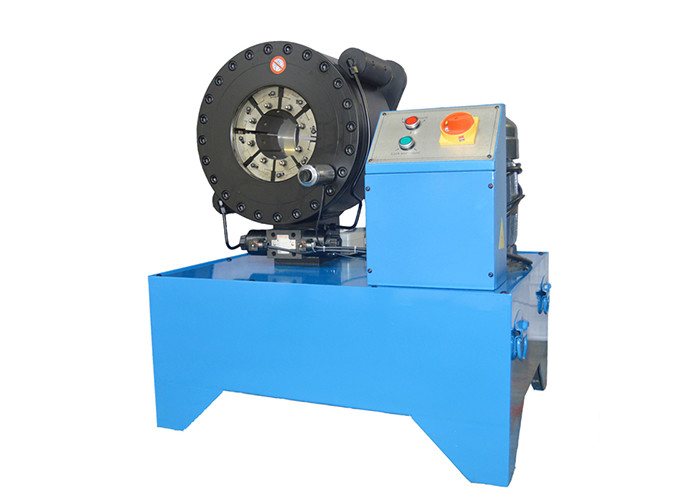

4 Inch LARGE AC HOSE CRIMPING MACHINE MS-E180
Deskripsi
MS-E180 ac selang mesin crimper dapat digunakan untuk membuat perakitan selang besar dengan bantalan fittings. Max. pembukaan untuk mati master adalah 45mm, memungkinkan selang besar diberi makan.Adaptor mati set membuatnya kemampuan crimping luas.
Fitur Utama
1. Kontrol tombol, lebih mudah dan nyaman;
2. struktur silinder hidrolik terkenal di dunia, biaya pemeliharaan yang rendah;
3. Jerman kualitas ukuran kontrol penguasa, stabilitas tinggi;
5. Motor cangkang aluminium kawat tembaga, waktu layanan yang panjang.
DATA TEKNIS
|
Model |
MS-E180 AC Hose Crimping Machine |
|
Jangkauan Crimping |
14 - 167 (mm) |
|
Kekuatan Crimping |
980 (T) |
|
Ukuran selang |
1/4 - 4 (inci) |
|
Max. pembukaan |
45 mm |
|
Set mati |
18 |
|
Tipe set mati |
32 180 |
|
Tekanan Sistem |
31.5 (Mpa) |
|
Keakuratan |
0.01 (mm) |
|
Pengendalian |
Negara anggota |
|
Tegangan Standar |
380 (V) |
|
Kekuatan motor |
7.5 (KW) |
|
Panjang |
800 (mm) |
|
Lebar |
650 (mm) |
|
Ketinggian |
880 (mm) |
|
Berat badan |
510 (Kg) |
E180 HOSE CRIMPER DIE SET
|
Tidak. |
Jangkauan Crimping |
Panjang |
|
6* |
6 - 8 mm |
55 |
|
8* |
8 - 10 mm |
55 |
|
10* |
10 - 12 mm |
55 |
|
12* |
12 - 15 mm |
55 |
|
15 |
15 - 18 mm |
55 |
|
18 |
18 - 21 mm |
55 |
|
21 |
21 - 24 mm |
55 |
|
24 |
24 - 27 mm |
55 |
|
27 |
27 - 33 mm |
55 |
|
33 |
33 - 39 mm |
75 |
|
39 |
39 - 45 mm |
75 |
|
45 |
45 - 51 mm |
90 |
|
51 |
51 - 57 mm |
90 |
|
57 |
57 - 66 mm |
100 |
|
66 |
66 - 73 mm |
110 |
| 73 | 73 - 90 mm | 110 |
| 90 | 90 - 96 mm | 110 |
| 96 | 96 - 102 mm | 120 |
| 102 | 102 - 108 mm | 120 |
| 108 | 108 - 114 mm | 120 |
| 114 | 114 - 123 mm | 120 |
| 123 | 123 - 136 mm | 120 |
Catatan
- * untuk set die non standar;
- Set mati yang disesuaikan tersedia;
- Tegangan khusus 110V, 208V, 240V, 415V tersedia;
-
