Energi hemat AC Hose Crimping Mesin
,NC130 Mesin AC Hose Crimping
,NC130

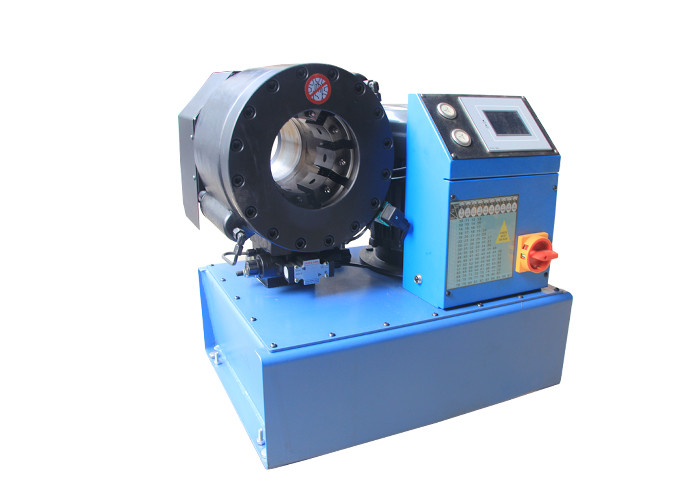

Mesin pemotong selang AC NUMERICAL MS-NC130
Deskripsi
MS-NC130 ac mesin crimper selang adalah model terbaru yang memiliki konfigurasi yang tinggi.
Keuntungan
1. teknologi kontrol UC, meningkatkan produktivitas;
2. Struktur pembuatan silinder hidrolik terkenal di dunia, waktu penggunaan yang lama;
3. Pedal kaki membuat crimping lebih aman;
4. set mati khusus meningkatkan rentang crimping;
5. tinggi desain manusia, penghematan energi.
DATA TEKNIS
|
Model |
MS-NC130 AC Hose Crimping Machine |
|
Jangkauan Crimping |
14 - 87 (mm) |
|
Kekuatan Crimping |
650 (T) |
|
Ukuran selang |
1/4 - 2,5 (inci) |
|
Max. pembukaan |
31 (mm) |
|
Set mati |
13 |
|
Tipe set mati |
P32 |
|
Tekanan Sistem |
31.5 (Mpa) |
|
Keakuratan |
0.01 (mm) |
|
Pengendalian |
Negara anggota |
|
Tegangan Standar |
220 (V) / 380 (V) |
|
Kekuatan motor |
3.75 (KW) |
|
Panjang |
650 (mm) |
|
Lebar |
550 (mm) |
|
Ketinggian |
650 (mm) |
|
Berat badan |
240 (Kg) |

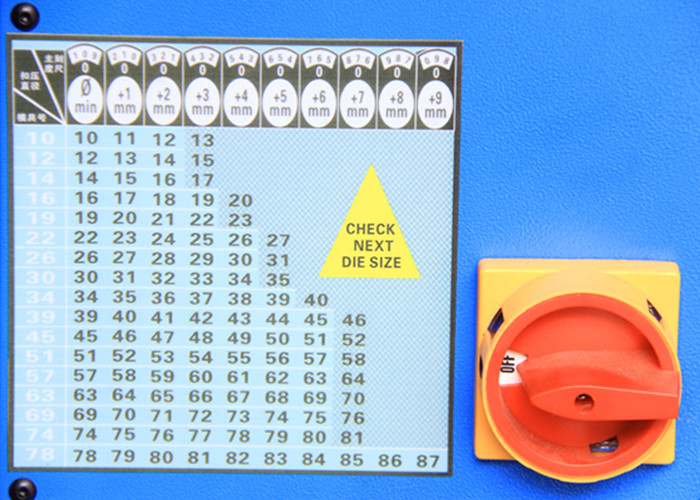

P32 SET PEMANGAT SIPULAN
|
Tidak. |
Jangkauan Crimping |
Panjang |
|
6* |
6 - 8 mm |
55 |
|
8* |
8 - 10 mm |
55 |
|
10* |
10 - 12 mm |
55 |
|
12* |
12 - 14 mm |
55 |
|
14 |
14 - 16 mm |
55 |
|
16 |
16 - 19 mm |
55 |
|
19 |
19 - 22 mm |
55 |
|
22 |
22 - 26 mm |
70 |
|
26 |
26 - 30 mm |
70 |
|
30 |
30 - 34 mm |
70 |
|
34 |
34 - 39 mm |
75 |
|
39 |
39 - 45 mm |
75 |
|
45 |
45 - 51 mm |
90 |
|
51 |
51 - 57 mm |
90 |
|
57 |
57 - 63 mm |
100 |
|
63 |
63 - 69 mm |
110 |
|
69 |
69 - 78 mm |
110 |
Catatan
- * untuk set die non standar;
- Set mati yang disesuaikan tersedia;
- Tegangan khusus 110V, 208V, 240V, 415V tersedia;
-
