Cremper selang rem massa
,51CG pengikat selang rem
,51CG Auto Ac Hose Crimper

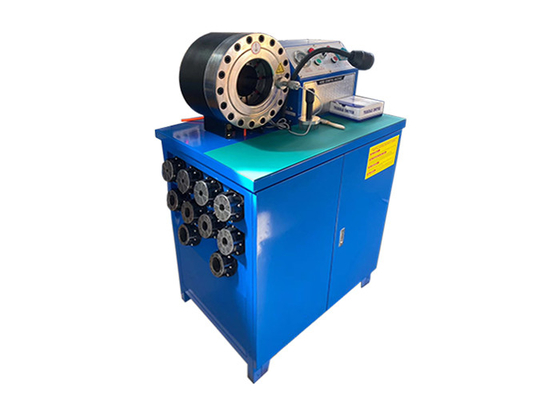

Mesin penghancur selang rem MS-51CG
Deskripsi
Mesin crimping pipa tekanan MS-51CG adalah model yang paling laris di Asia.Dengan presisi tinggi crimping mikrometer untuk mengontrol ukuran, tidak perlu mengatur ulang setiap kali, sehingga meningkatkan produktivitas.
Keuntungan Utama
1. Teknologi canggih, satu bagian silinder minyak hidrolik;
2. Perawatan mudah dengan struktur sederhana;
3. Set mati kekerasan tinggi untuk selang tekanan tinggi;
4. Set mati aman instalasi;
5- Mode operasi ganda, lebih fleksibel.
DATA TEKNIS
|
Model |
MS-51CG Brake Hose Crimper |
|
Jangkauan Crimping |
14 - 87 (mm) |
|
Kekuatan Crimping |
500 (T) |
|
Ukuran selang |
1/4 - 2 (inci) |
|
Max. pembukaan |
30 mm |
|
Set mati |
10 |
|
Tipe set mati |
51 |
|
Tekanan Sistem |
31.5 (Mpa) |
|
Keakuratan |
0.05 (mm) |
|
Pengendalian |
Negara anggota |
|
Tegangan Standar |
220 (V) / 380 (V) |
|
Kekuatan motor |
3 (KW) |
|
Panjang |
800 (mm) |
|
Lebar |
640 (mm) |
|
Ketinggian |
1300 (mm) |
|
Berat badan |
320 (Kg) |
Seri 51 CRIMPER DIE SET
|
Tidak. |
Jangkauan Crimping |
Panjang |
|
6* |
6 - 8 mm |
35 |
|
8* |
8 - 10mm |
35 |
|
10* |
10 - 12 mm |
35 |
|
12* |
12 - 15 mm |
35 |
|
15 |
15 - 19mm |
60 |
|
19 |
19 - 23mm |
60 |
|
23 |
23 - 26mm |
60 |
|
26 |
26 - 31mm |
60 |
|
31 |
31 - 36mm |
70 |
|
36 |
36 - 41mm |
70 |
|
41 |
41 - 47mm |
70 |
|
47 |
47 - 55mm |
80 |
|
55 |
55 - 63mm |
80 |
|
63 |
63 - 69mm |
80 |
|
69* |
69 - 76mm |
90 |
Catatan
¤ * untuk set die non standar;
¤ Set die yang disesuaikan tersedia;
¤ Tegangan khusus 110V, 208V, 240V, 415V tersedia;
Opsional
¤ Alat Perubahan Cepat
¤ Kontrol UC;
-
AThose who open a truck repair shop usually apply pressure to the brake oil pipe and hydraulic oil pipe of the truck. The manual version has sufficient pressure and the joint is tightly pressed. The truck runs long distances without oil leakage, which is recognized by the driver. The machine is durable and can be used in stores, as well as in places without electricity outdoors
-
TAs a shop specializing in precision machinery, we have exceptionally high precision requirements for crimping machines. This equipment features adjustable crimping stroke with minimal error, ensuring oil-free connections after crimping. Even beginners can quickly learn—just 30 minutes of training enables them to operate it independently
-
