Mesin Perbaikan AC Hose Crimping Machine
,51CG AC Hose Crimping Machine
,51CG Air Conditioner Hose Crimper

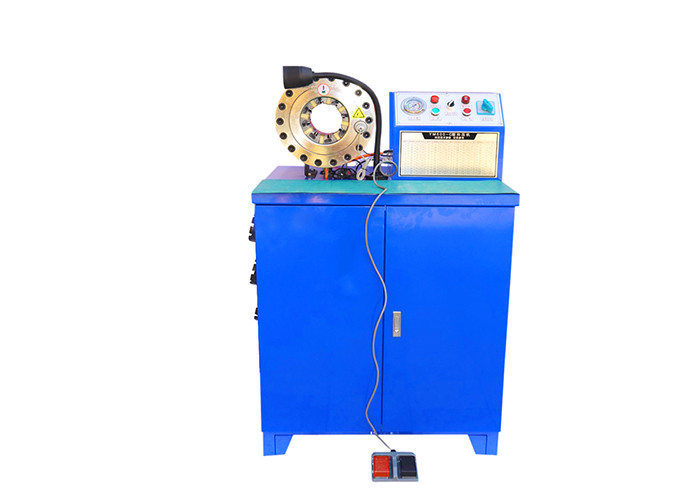

PEMBERIAN AC HOSE CRIMPING MACHINE MS-51CG
Deskripsi
MS-51CG AC selang mesin crimping terkenal dengan produktivitasnya yang besar.dan juga swaging ukuran tabung logam, menekan tali kawat untuk penggunaan keamanan.
Keuntungan Utama
1. desain satu bagian kepala silinder, mencegah kehilangan tekanan;
2. Pedal kaki membuat kerja crimping lebih fleksibel;
3. lampu kerja, meningkatkan tingkat keselamatan;
4. Die set dengan suhu tinggi pengolahan panas, kekerasan tinggi;
5Struktur dan desain sederhana, pemeliharaan mudah dan biaya rendah.
DATA TEKNIS
|
Model |
MS-51CG AC Hose Crimping Machine |
|
Jangkauan Crimping |
14 - 87 (mm) |
|
Kekuatan Crimping |
500 (T) |
|
Ukuran selang |
1/4 - 2 (inci) |
|
Max. pembukaan |
30 mm |
|
Set mati |
10 |
|
Tipe set mati |
51 |
|
Tekanan Sistem |
31.5 (Mpa) |
|
Keakuratan |
0.05 (mm) |
|
Pengendalian |
Negara anggota |
|
Tegangan Standar |
220 (V) / 380 (V) |
|
Kekuatan motor |
3 (KW) |
|
Panjang |
800 (mm) |
|
Lebar |
640 (mm) |
|
Ketinggian |
1300 (mm) |
|
Berat badan |
320 (Kg) |
51 SERIES HOSE CRIMPER DIE SET
|
Tidak. |
Jangkauan Crimping |
Panjang |
|
6* |
6 - 8 mm |
35 |
|
8* |
8 - 10 mm |
35 |
|
10* |
10 - 12 mm |
35 |
|
12* |
12 - 15 mm |
35 |
|
15 |
15 - 19 mm |
60 |
|
19 |
19 - 23 mm |
60 |
|
23 |
23 - 26 mm |
60 |
|
26 |
26 - 31 mm |
60 |
|
31 |
31 - 36 mm |
70 |
|
36 |
36 - 41 mm |
70 |
|
41 |
41 - 47 mm |
70 |
|
47 |
47 - 55 mm |
80 |
|
55 |
55 - 63 mm |
80 |
|
63 |
63 - 69 mm |
80 |
|
69* |
69 - 76 mm |
100 |
Catatan
- * untuk set die non standar;
- Set mati yang disesuaikan tersedia;
- Tegangan khusus 110V, 208V, 240V, 415V tersedia;
Opsional
- Alat Perubahan Cepat
- Kontrol UC;
-
