Brake Low Pressure Hose Crimping Machine (Mesin Pengeringan Selang Tekanan Rendah)
,E130 Mesin pengikat selang tekanan rendah
,E130 alat penggaruk selang AC mobil
Mesin PEMANGAT SIPUT BREK MS-E130
Deskripsi

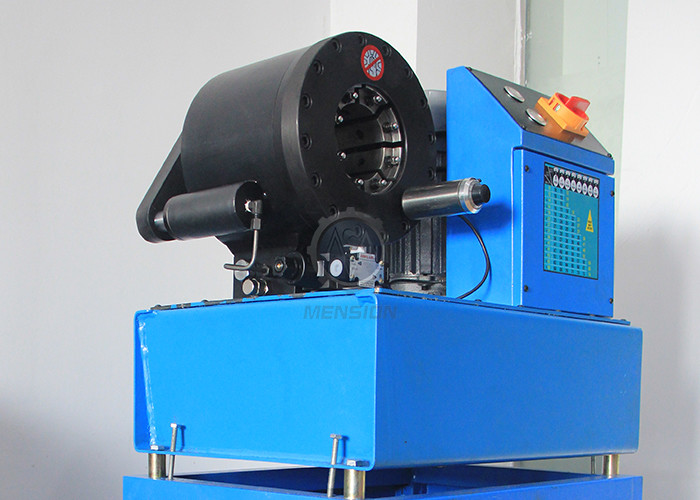

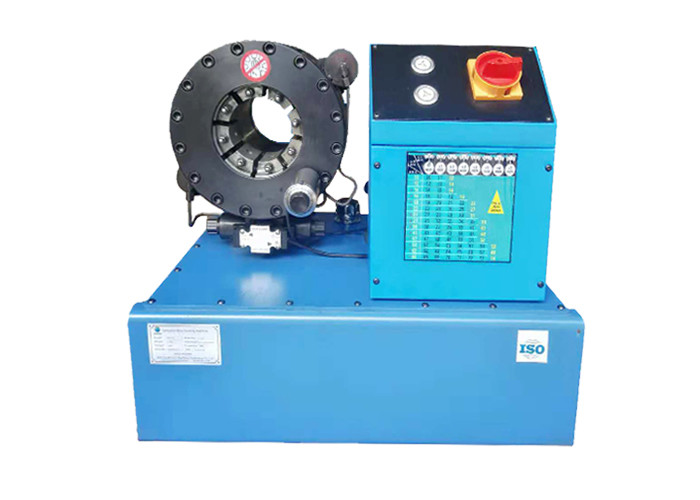

Mesin crimping selang rem MS-E130 adalah model modern dengan desain FINN POWER. Juga dapat menekan selang karet hidrolik tekanan tinggi hingga 2 inci.
Keuntungan
1) Kapasitas crimping yang besar,
2) Desain sendiri blok menghubungkan katup sistem,
3) Pembukaan dan penutupan cepat,
4) Set mati manusia memilih lembar referensi,
5) Kinerja yang stabil bahkan setelah bertahun-tahun layanan.
DATA TEKNIS
|
Model |
MS-E130 Mesin Crimping Selang Rem |
|
Jangkauan Crimping |
14 - 87 (mm) |
|
Kekuatan Crimping |
640 (T) |
|
Ukuran selang |
1/4 - 2 (inci) |
|
Max. pembukaan |
25 mm |
|
Set mati |
10 |
|
Tipe set mati |
130 |
|
Tekanan Sistem |
31.5 (Mpa) |
|
Keakuratan |
0.01 (mm) |
|
Pengendalian |
Negara anggota |
|
Tegangan Standar |
220 (V) / 380 (V) |
|
Kekuatan motor |
3 (KW) |
|
Panjang |
630 (mm) |
|
Lebar |
450 mm |
|
Ketinggian |
560 (mm) |
|
Berat badan |
190 (Kg) |
130 HOSE CRIMPER DIE SET
|
Tidak. |
Jangkauan Crimping |
Panjang |
|
6* |
6 - 8 mm |
35 |
|
8* |
8 - 10mm |
35 |
|
10* |
10 - 12 mm |
35 |
|
12* |
12 - 14 mm |
35 |
|
14 |
14 - 16mm |
60 |
|
16 |
16 - 20mm |
60 |
|
20 |
20 - 22mm |
60 |
|
22 |
22 - 26mm |
60 |
|
26 |
26 - 30mm |
70 |
|
30 |
30 - 38 mm |
70 |
|
38 |
38 - 46 mm |
70 |
|
46 |
46 - 54mm |
80 |
|
54 |
54 - 64mm |
80 |
|
64 |
64 - 69mm |
80 |
|
69* |
69 - 76mm |
100 |
Catatan
1) Set mati yang disesuaikan tersedia;
2) Tegangan khusus 110V, 208V, 240V, 415V tersedia;
3) * untuk set die non standar.
Opsional
1) Alat Perubahan Cepat
2) Pergantian cepat Die Set Rack;
3) Kontrol UC;
4) Pedal kaki;
5) Pengukur tekanan;
6) Rak Normal
-
