Mesin Crimping Selang AC Range Besar
,UC AC Hose Crimping Machine
,P180 Pengikat selang pendingin udara

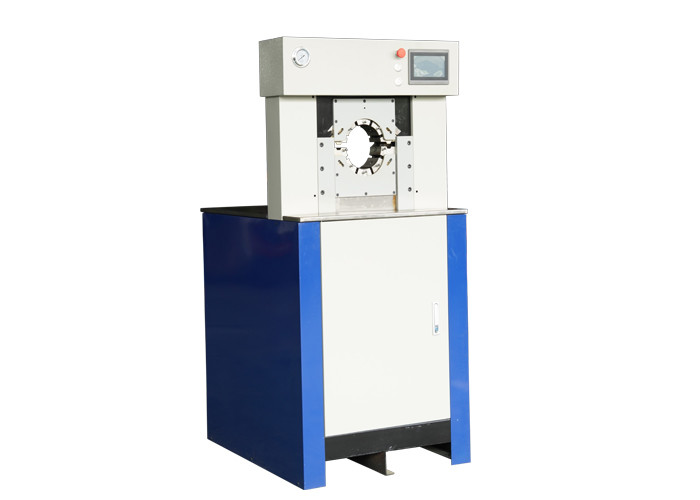

BIG 4 Inch AC HOSE CRIMPING MACHINE MS-P180
Deskripsi
MS-P180 high pressure hydraulic hose crimper dirancang untuk memenuhi kebutuhan yang meningkat untuk crimper tipis dengan daya besar.
Fitur Utama
1) Kontrol komputer mikro, sistem PLC canggih, stabilitas dan produktivitas yang tinggi;
2) Karoseri mesin yang tebal, waktu layanan yang panjang;
3) Pedal kaki membebaskan kedua tangan Anda untuk selang besar.
DATA TEKNIS
|
Model |
MS-P180 AC Hose Crimping Machine |
|
Jangkauan Crimping |
14 - 127 (mm) |
|
Kekuatan Crimping |
980 (T) |
|
Ukuran selang |
1/4 - 4 (inci) |
|
Max. pembukaan |
80 mm |
|
Set mati |
27 |
|
Tipe set mati |
P32 P180 |
|
Tekanan Sistem |
31.5 (Mpa) |
|
Keakuratan |
0.01 (mm) |
|
Pengendalian |
UC |
|
Tegangan Standar |
380 (V) |
|
Kekuatan motor |
3.75 (KW) |
|
Panjang |
780 (mm) |
|
Lebar |
1050 (mm) |
|
Ketinggian |
1650 (mm) |
|
Berat badan |
1520 (KG) |
P180 CRIMPER DIE SET
|
Tidak. |
Jangkauan Crimping |
Panjang |
|
6* |
6 - 8 mm |
55 |
|
8* |
8 - 10 mm |
55 |
|
10* |
10 - 12 mm |
55 |
|
12* |
12 - 14 mm |
55 |
|
14 |
14 - 16 mm |
55 |
|
16 |
16 - 19 mm |
55 |
|
19 |
19 - 22 mm |
55 |
|
22 |
22 - 26 mm |
55 |
|
26 |
26 - 30 mm |
55 |
|
30 |
30 - 34 mm |
70 |
|
34 |
34 - 39 mm |
70 |
|
39 |
39 - 45 mm |
70 |
|
45 |
45 - 51 mm |
75 |
|
51 |
51 - 57 mm |
75 |
|
57 |
57 - 63 mm |
90 |
|
63 |
63 - 69 mm |
90 |
|
69 |
69 - 74 mm |
100 |
| 74 | 74 - 80 mm | 110 |
| 78 | 78 - 87 mm | 110 |
| 84 | 84 - 92 mm | 110 |
| 92 | 92 - 100 mm | 120 |
| 100 | 100 - 108 mm | 120 |
| 108 | 108 - 116 mm | 120 |
| 116 | 116 - 126 mm | 120 |
| 126 | 126 - 136 mm | 120 |
| 136 | 136 - 146 mm | 120 |
| 146 | 146 - 156 mm | 120 |
| 156 | 156 - 166 mm | 120 |
| 166 | 166 - 178 mm | 120 |
| 178 | 178 - 190 mm | 120 |
| 190 | 190 - 202 mm | 120 |
Catatan
- * untuk set die non standar;
- Set mati yang disesuaikan tersedia;
- Tegangan khusus 110V, 208V, 240V, 415V tersedia;
¢ CILINDER CRIMING yang tipis
Kepala crimping super tipis memungkinkan selang pencet crimper dengan pemasangan siku besar
Sistem Elektronik
Kabel kawat tebal, saklar berkualitas tinggi dan konverter
PENGUKUR Tekanan
Standar dengan tekanan gauge, membuat tekanan crimping mungkin
Produktivitas Tinggi
¢ Bidang Aplikasi
-
