Spesifikasi
Menyoroti:
Brake Flexible Hose Crimping Machine (Mesin untuk mengikat selang yang fleksibel)
,Mesin Crimping Selang Fleksibel yang Dapat Diandalkan
,SP32 Mesin Crimping Selang
Crimping Range:
14 - 87mm
Hose Size:
1/4 - 2,5 inci
Die Sets:
13
Color:
biru
Max. Opening:
31mm
Crimping Force:
650T
Product Name:
SP32 Mesin Crimping Selang Rem
Application:
Bengkel
System Pressure:
31,5Mpa
Power:
3,75kw
Size:
650*550*1360mm
Weight:
310Kg
Atribut Utama
Nama merek:
MENSION
Nomor Model:
MS-SP32
Tempat Asal:
CN
Sertifikasi:
CE RoHS
Jumlah Pesanan Minimum:
1 set
Harga:
Contact Us
Kemampuan Pasokan:
1000 set per bulan
Waktu Pengiriman:
2 - 7 Hari Kerja
Ketentuan Pembayaran:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Kemasan Standar:
Satu Kayu Lapis Untuk Satu Set
Deskripsi Produk
Alat Klem Selang Rem Mesin Press Selang Hidrolik Finn Power P32 Manual

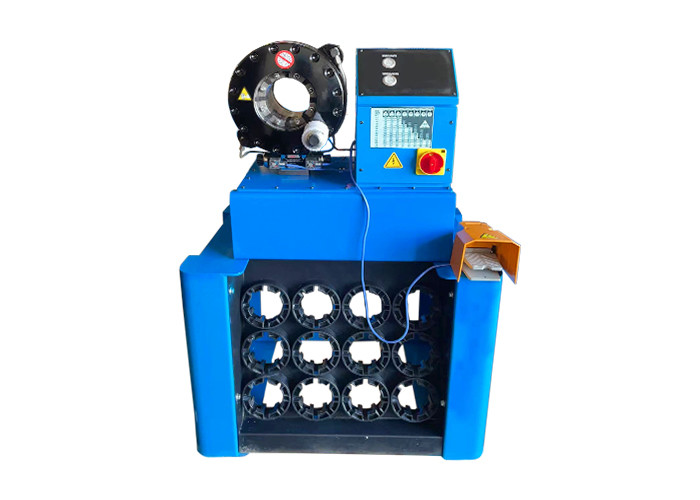

MESIN KLEM SELANG REM SP32
DESKRIPSI
Mesin klem hidrolik MS-SP32 banyak digunakan dalam industri termasuk selang hidrolik, transmisi material listrik, pembuatan kapal dan perahu, sistem kereta api, pipa industri, kabel, dan tali kawat.
KEUNGGULAN
- Tinggi desain ergonomis untuk pengoperasian yang nyaman
- Badan mesin dan rak yang dipertebal untuk keamanan yang ditingkatkan
- Set cetakan kekerasan tinggi untuk masa pakai yang diperpanjang
- Pedal kaki standar untuk meningkatkan produktivitas
DATA TEKNIS
| Model | MS-SP32 Klem Selang Rem |
|---|---|
| Rentang Klem | 14 - 87 (mm) |
| Kekuatan Klem | 650 (T) |
| Ukuran Selang | 1/4 - 2.5 (inci) |
| Pembukaan Maks. | 31 (mm) |
| Set Cetakan | 13 |
| Tipe Set Cetakan | P32 |
| Tekanan Sistem | 31.5 (Mpa) |
| Akurasi | 0.01 (mm) |
| Kontrol | MS |
| Tegangan Standar | 220 (V) / 380 (V) |
| Daya Motor | 3.75 (KW) |
| Panjang | 650 (mm) |
| Lebar | 550 (mm) |
| Tinggi | 1360 (mm) |
| Berat | 310 (KG) |
SET CETAKAN KLEM SP32
| No. Cetakan | Rentang Klem | Panjang |
|---|---|---|
| 6* | 6 - 8mm | 55 |
| 8* | 8 - 10mm | 55 |
| 10* | 10 - 12mm | 55 |
| 12* | 12 - 14mm | 55 |
| 14 | 14 - 16mm | 55 |
| 16 | 16 - 19mm | 55 |
| 19 | 19 - 22mm | 55 |
| 22 | 22 - 26mm | 70 |
| 26 | 26 - 30mm | 70 |
| 30 | 30 - 34mm | 70 |
| 34 | 34 - 39mm | 75 |
| 39 | 39 - 45mm | 75 |
| 45 | 45 - 51mm | 90 |
| 51 | 51 - 57mm | 90 |
| 57 | 57 - 63mm | 100 |
| 63 | 63 - 69mm | 110 |
| 69 | 69 - 78mm | 110 |
CATATAN
• * menunjukkan set cetakan non-standar
• Set cetakan yang disesuaikan tersedia berdasarkan permintaan
• Pilihan tegangan khusus tersedia: 110V, 208V, 240V, 415V
